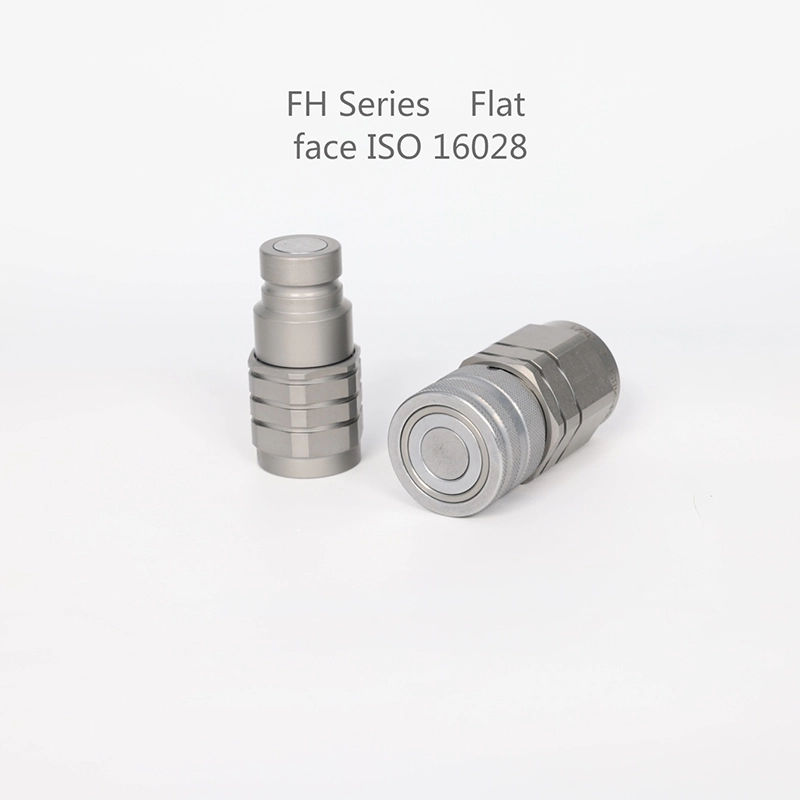

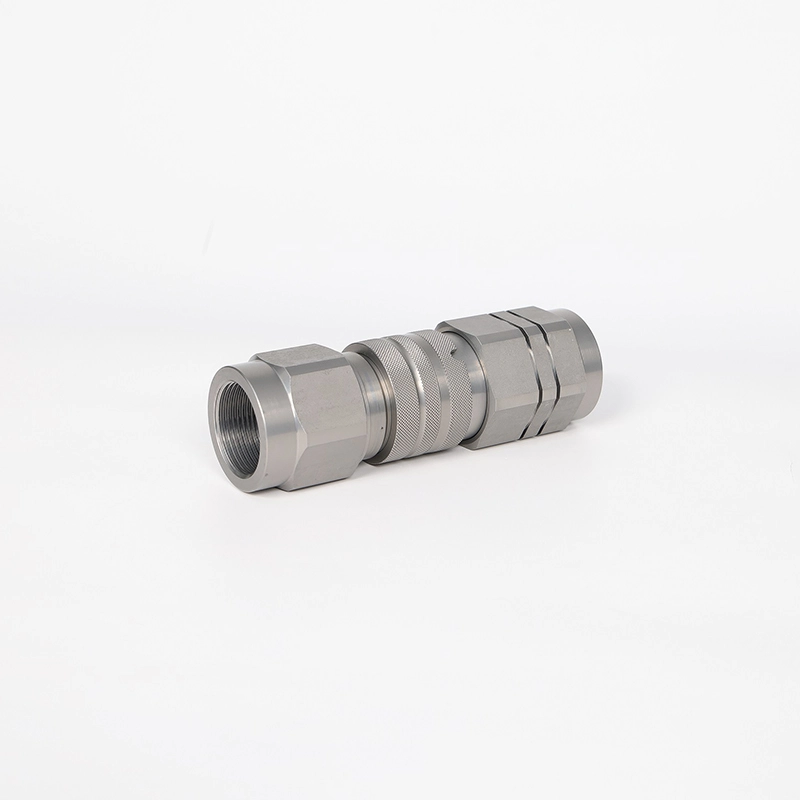

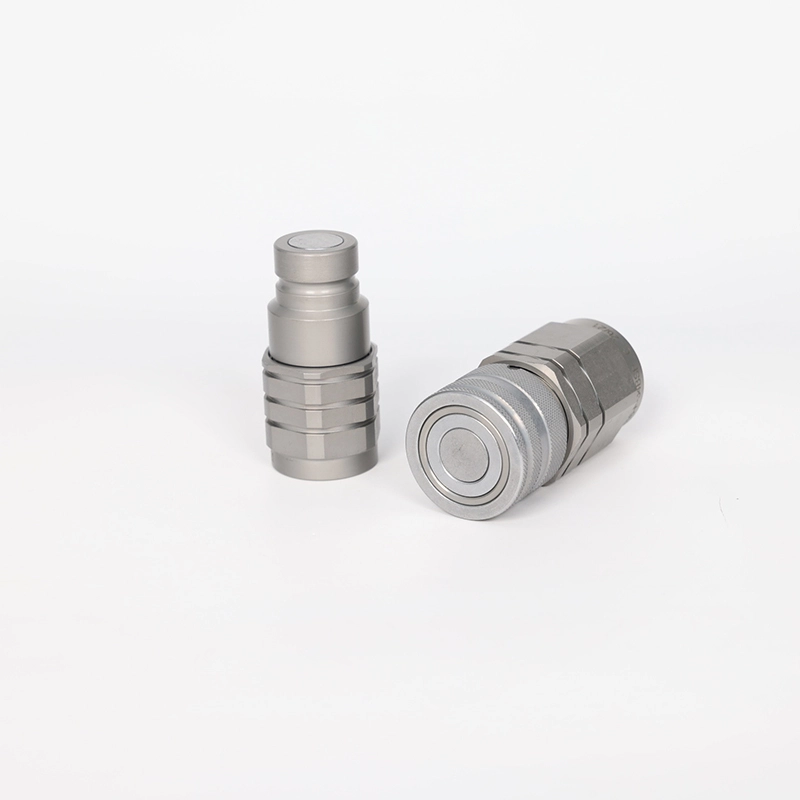

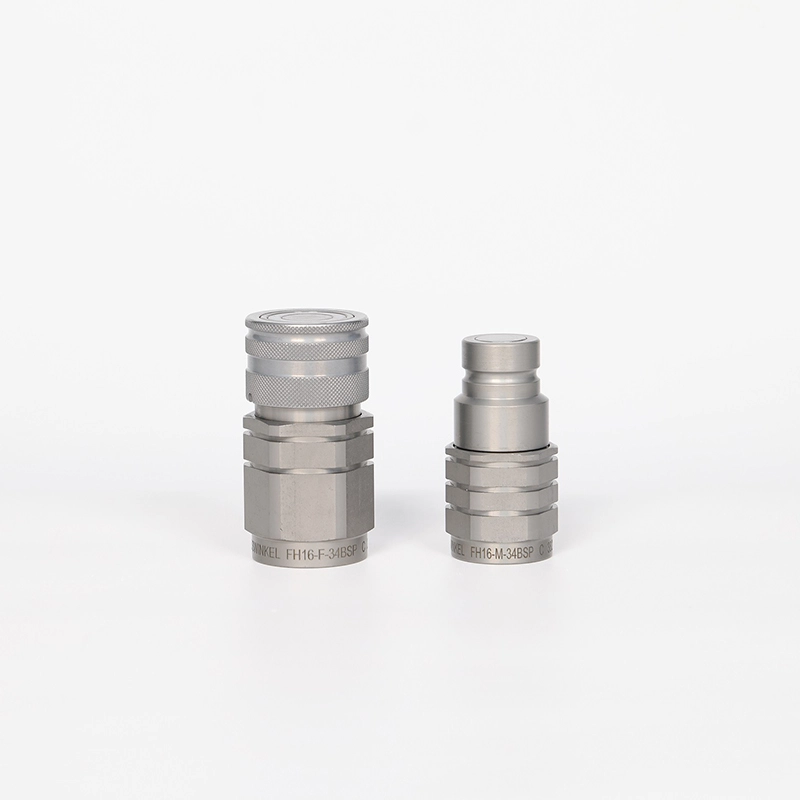

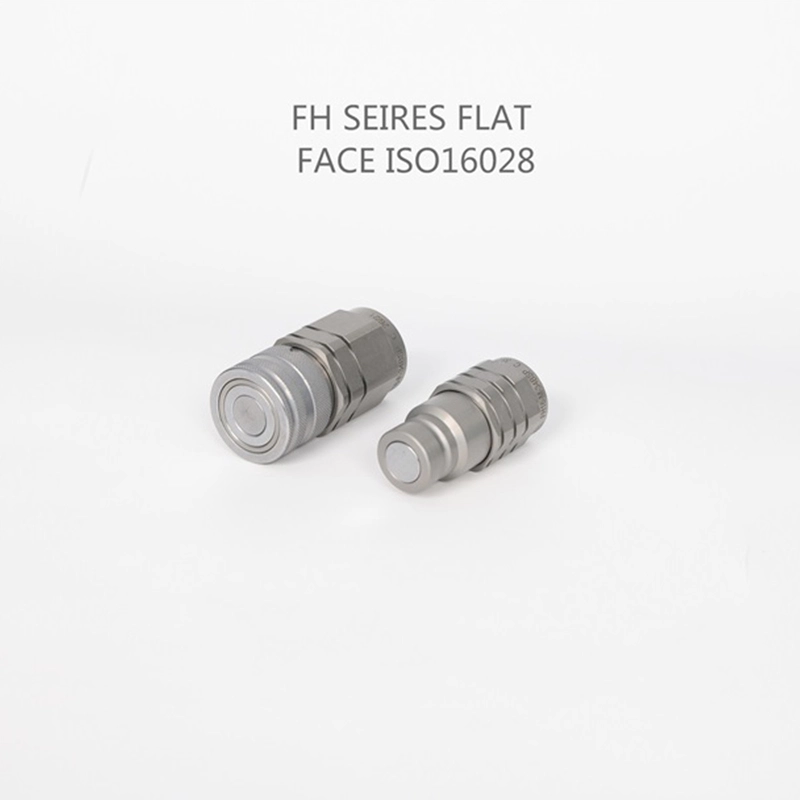

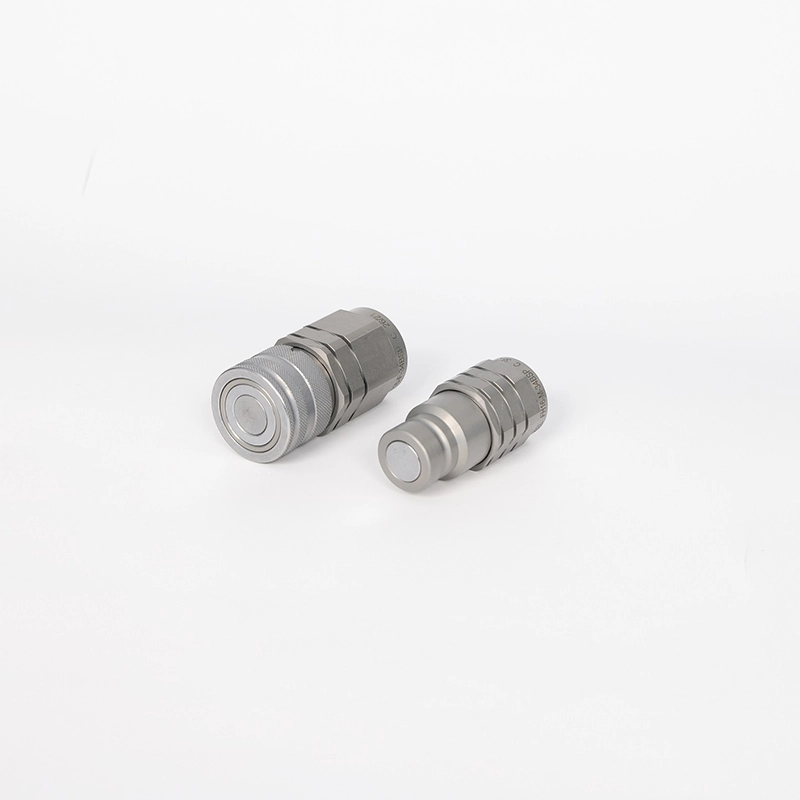

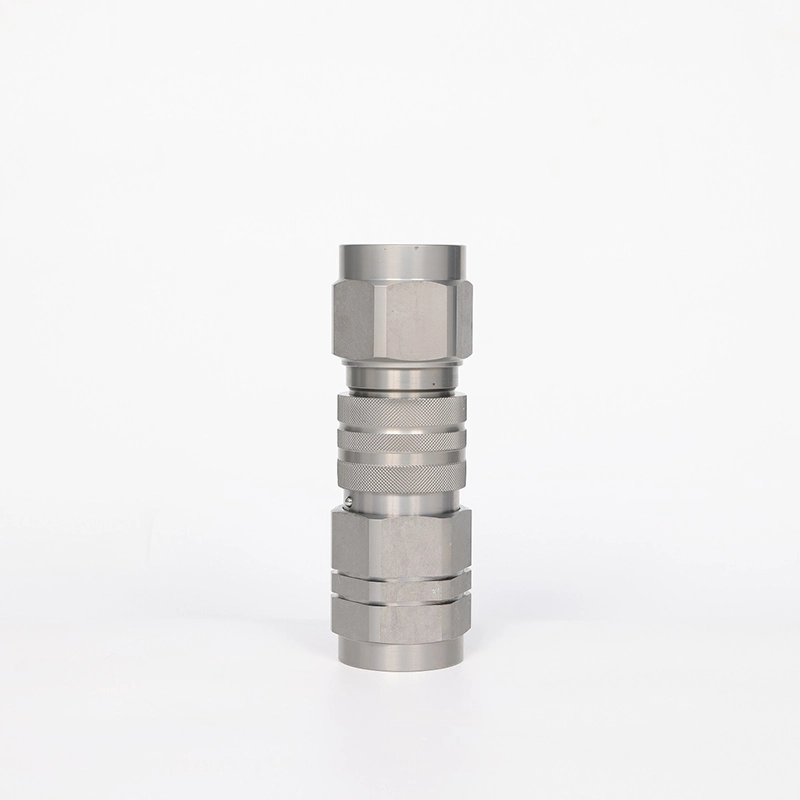

Engineered for high-pressure environments, these flat face couplers provide reliable connections and easy release at 70MPa, ideal for heavy-duty hydraulic applications.
Nominal size | Working pressure | Rated flow （ISO） | Max flow rate | Burst pressure | Fluid spillage | |||
| Male | Female | Coupled | ||||||
| FH/HP | ISO | Mpa | l/min | l/min | Mpa | Mpa | Mpa | cc |
| FH06/HP | 6.3 | 70 | 12 | 25 | 200 | 230 | 230 | 0.008 |
| FH10/HP | 10 | 70 | 23 | 46 | 210 | 210 | 220 | 0.012 |

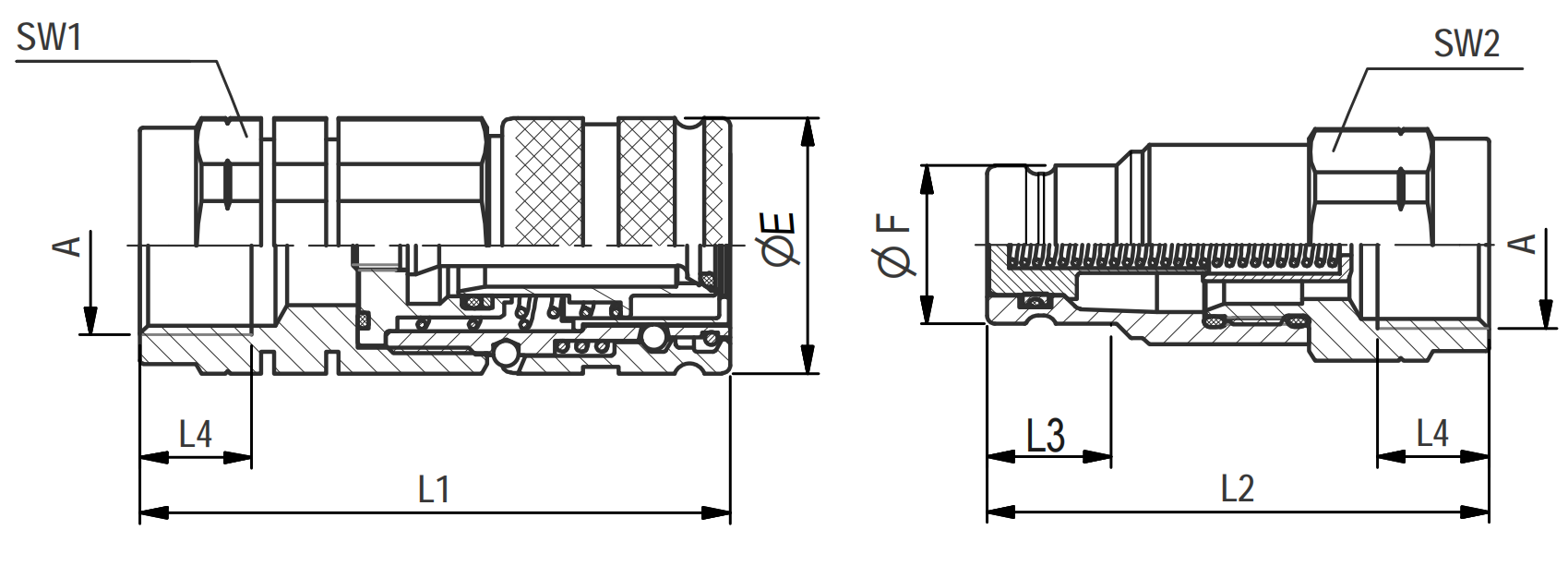

| 内螺纹DIN 3852 /ANSI B1.20.1 /Female Thread DIN 3852 /ANSI B1.20.1 | ||||||||||||||
| ISO | A部分 Port A | 尺寸 | 母头 | 重量 | 公头 | 重量 | ||||||||
| Dimensions(mm) | Female Body | Weight | Male Tip | Weight | ||||||||||
| D | L1 | L2 | L3 | L4 | ØE | ØF | SW1 | SW2 | Part Numbers | (g) ca | Part Numbers | (g) ca | ||
| 6.3 | G 1/4 | 58.5 | 54 | 13 | 28 | 16.2 | 27 | 22 | FH06-F-14BSP/HP | 195 | FH06-M-14BSP/HP | 102 | ||
| NPT 1/4 | 58.5 | 54 | 13 | 28 | 16.2 | 27 | 22 | FH06-F-14NPT/HP | 203 | FH06-M-14NPT/HP | 107 | |||
| 10 | G 3/8 | 69 | 60 | 13 | 32 | 19.79 | 30 | 27 | FH10-F-38BSP/HP | 309 | FH10-M-38BSP/HP | 152 | ||
| NPT 3/8 | 74 | 63 | 13 | 32 | 19.79 | 30 | 27 | FH10-F-38NPT/HP | 315 | FH10-M-38NPT/HP | 160 | |||
| G 1/2 | 74 | 63 | 16 | 32 | 19.79 | 30 | 27 | FH10-F-12BSP/HP | 297 | FH10-M-12BSP/HP | 150 | |||
| NPT 1/2 | 74 | 63 | 16 | 32 | 19.79 | 30 | 27 | FH10-F-12NPT/HP | 300 | FH10-M-12NPT/HP | 147 | |||
