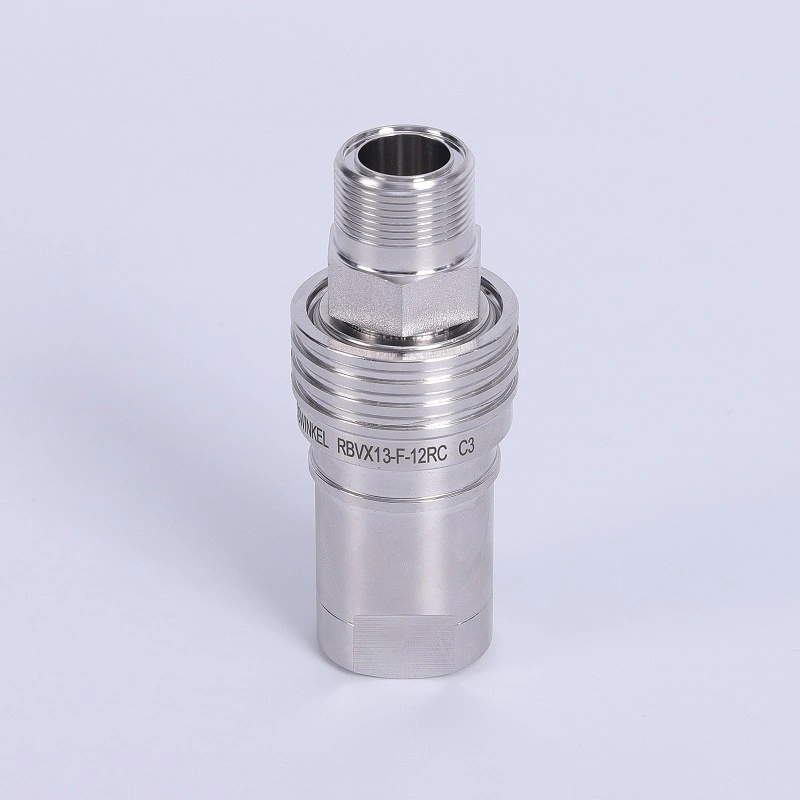

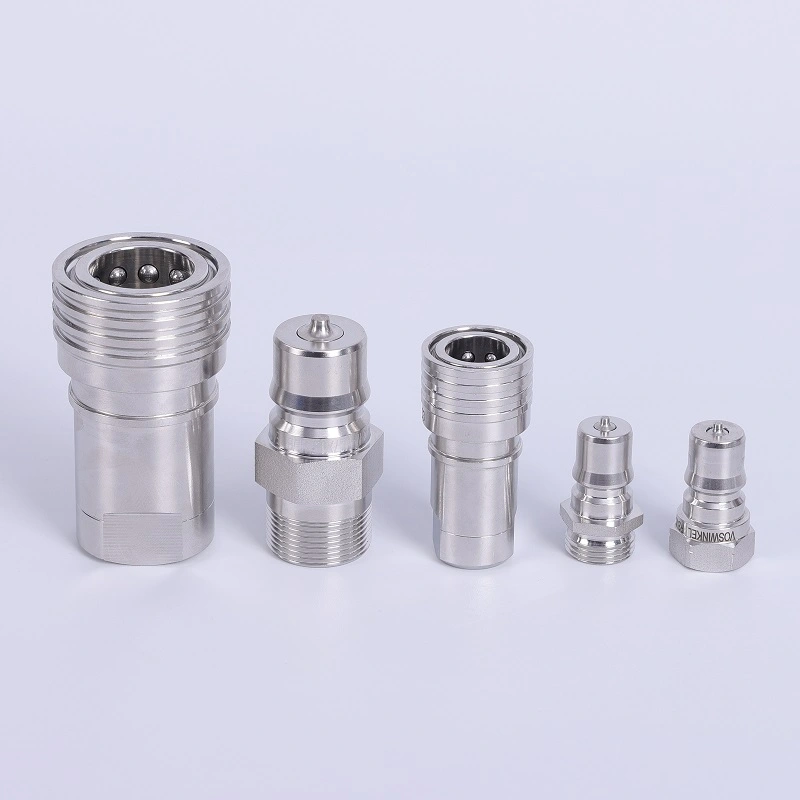

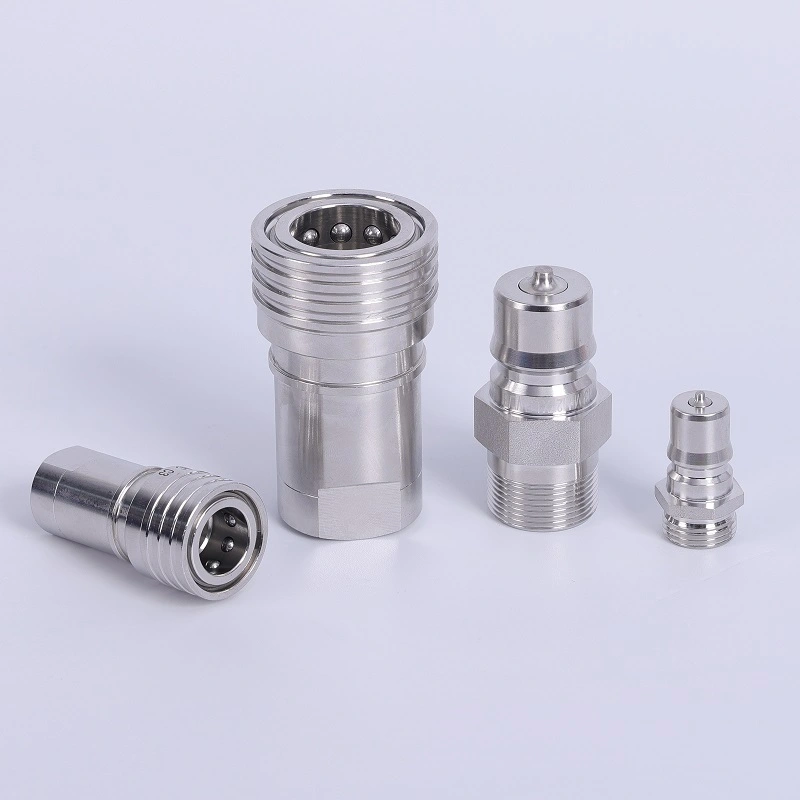

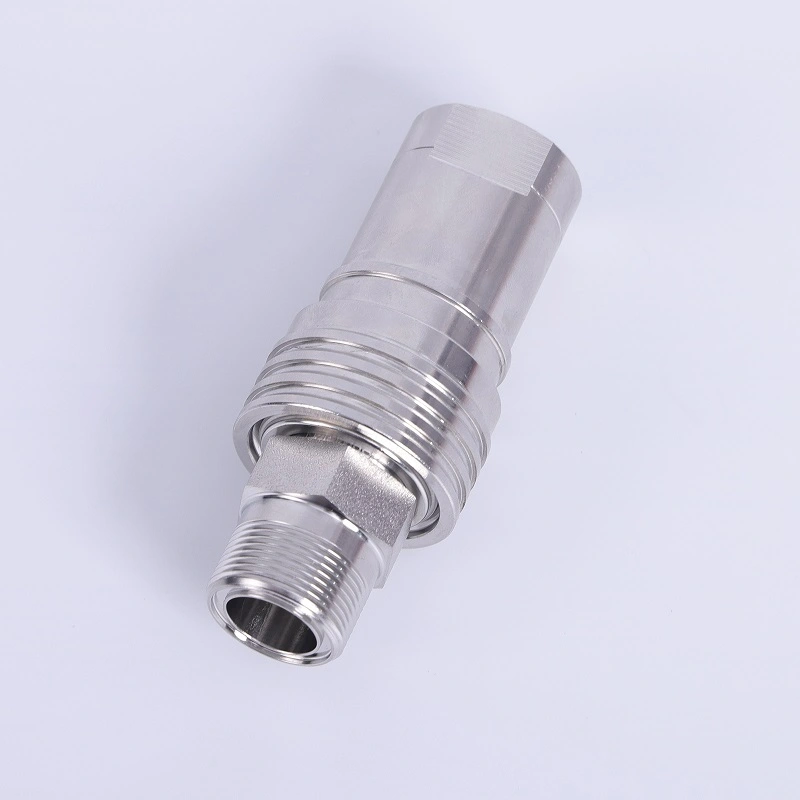

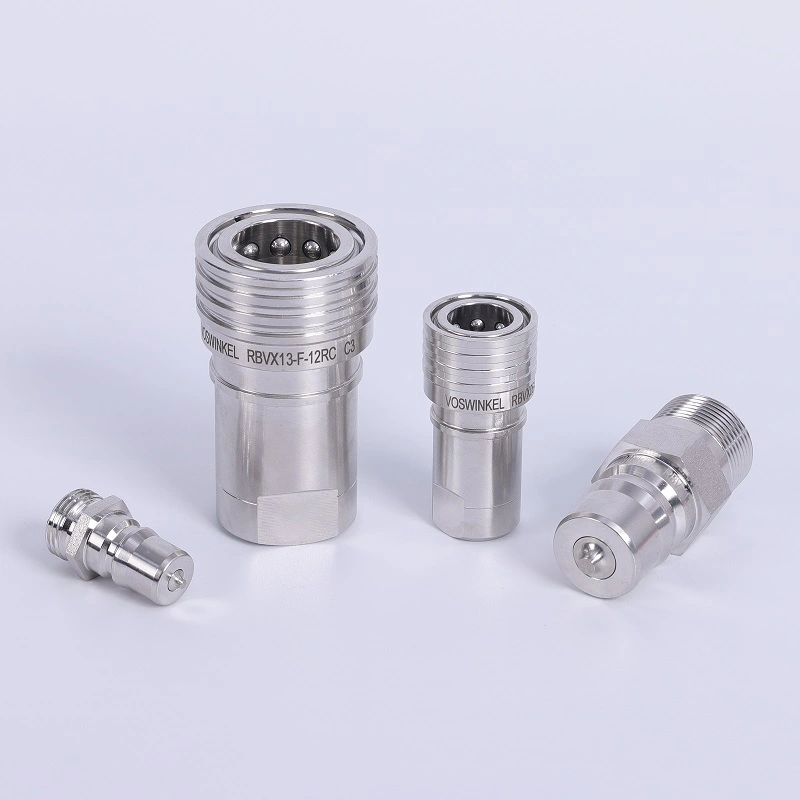

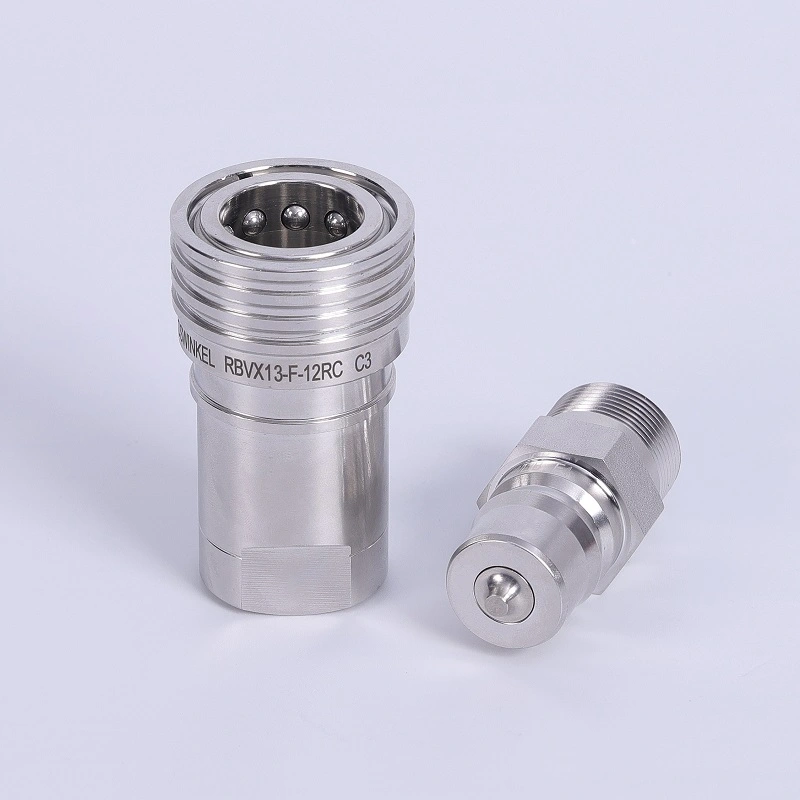

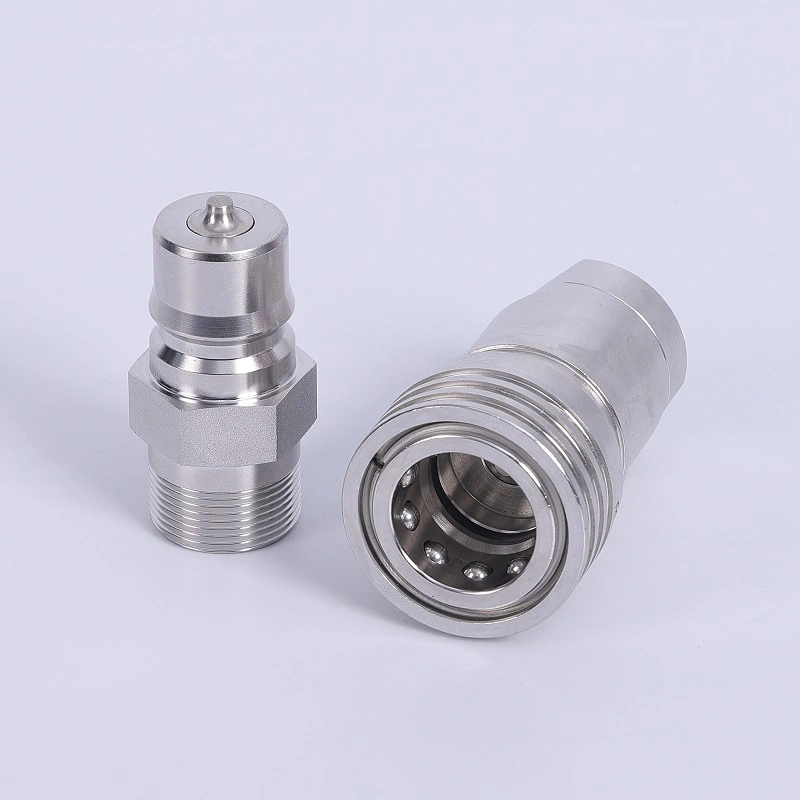

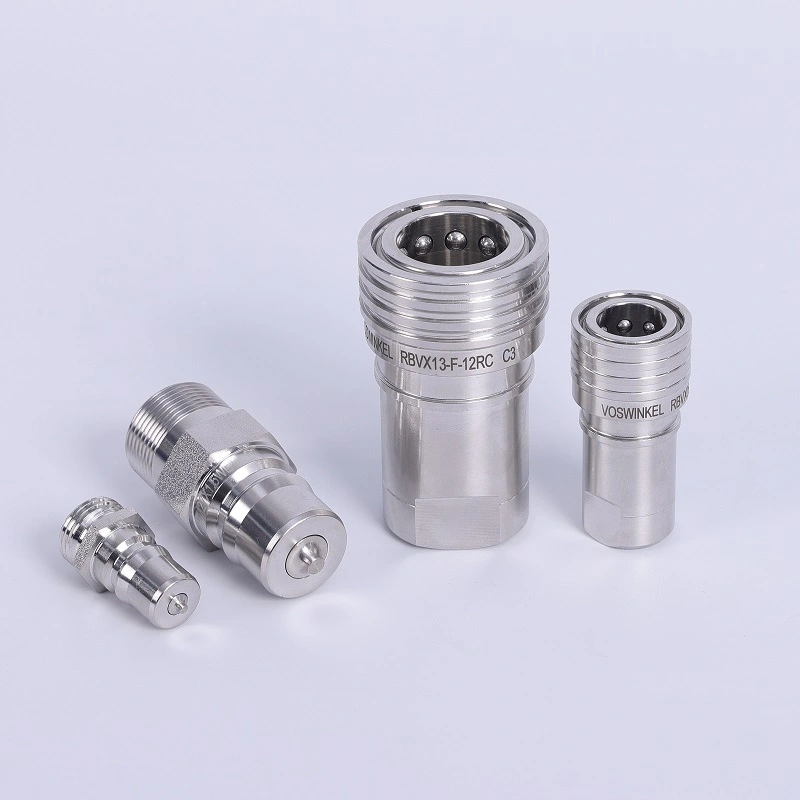

Kuaishi's RBVX Coupling for Semiconductor Electrolyte offers exceptional durability and leak-free performance. Designed for semiconductor manufacturing, it ensures reliable connections in electrolyte systems, featuring high corrosion resistance and precision engineering for optimal efficiency in critical semiconductor applications.

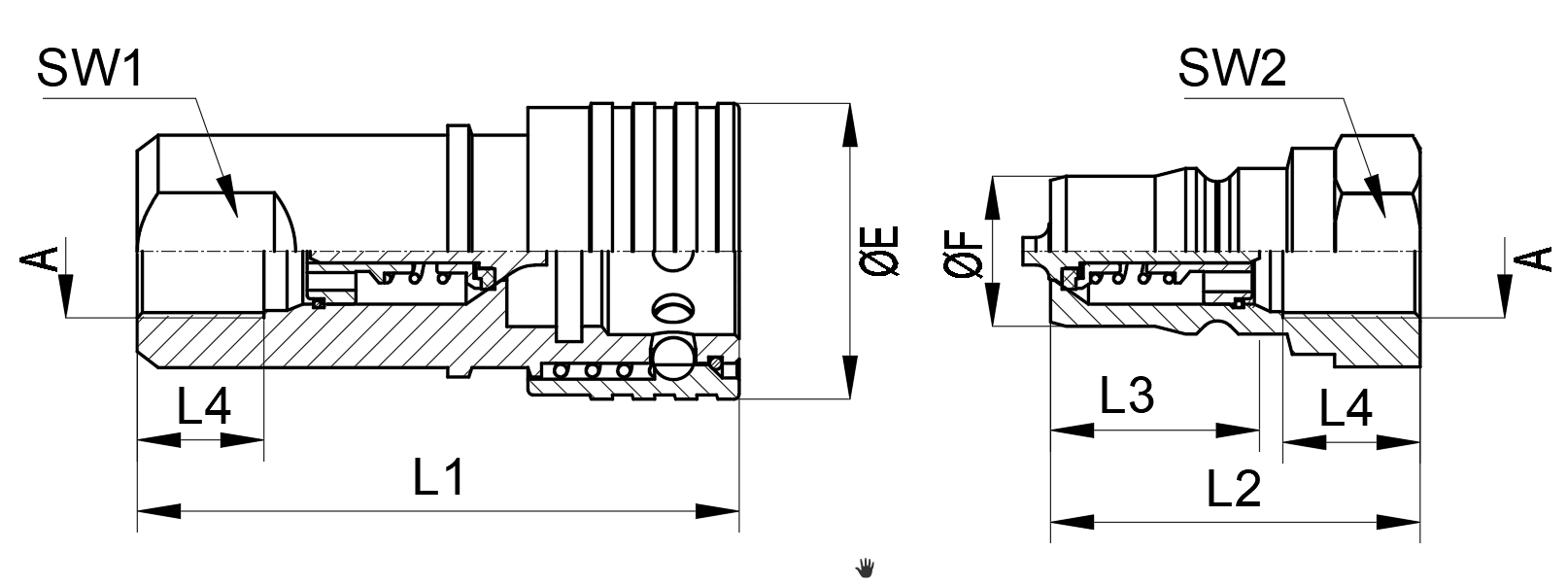

| 内螺纹DIN 3852 /ANSI B1.20.1 /Female Thread DIN 3852 /ANSI B1.20.1 | ||||||||||||||
| ISO | A部分 Port A | 尺寸 | 母头 | 重量 | 公头 | 重量 | ||||||||
| Dimensions(mm) | Female Body | Weight | Male Tip | Weight | ||||||||||
| D | L1 | L2 | L3 | L4 | ØE | ØF | SW1 | SW2 | Part Numbers | (g) ca | Part Numbers | (g) ca | ||
| 6.3 | G1/4 | 57 | 35 | 21.5 | 13 | 28 | 14.2 | 19 | 19 | RBVX06-F-14BSP | 123 | RBVX06-M-14BSP | 39 | |
| NPT 1/4 | 57 | 35 | 21.5 | 13 | 28 | 14.2 | 19 | 19 | RBVX06-F-14NPT | 124 | RBVX06-M-14NPT | 40 | ||
| RC1/4 | 57 | 35 | 21.5 | 13 | 28 | 14.2 | 19 | 19 | RBVX06-F-14RC | 124 | RBVX06-M-14RC | 40 | ||
| 12.5 | G1/2 | 75.7 | 44.5 | 27.2 | 16 | 44 | 23.55 | 29 | 29 | PBVX13-F-12BSP | 346 | PBVX13-M-12BSP | 112 | |
| NPT 1/2 | 75.7 | 44.5 | 27.2 | 16 | 44 | 23.55 | 29 | 29 | PBVX13-F-12NPT | 349 | PBVX13-M-12NPT | 115 | ||
| RC1/2 | 75.7 | 44.5 | 27.2 | 16 | 44 | 23.55 | 29 | 29 | PBVX13-F-12RC | 349 | PBVX13-M-12RC | 115 | ||

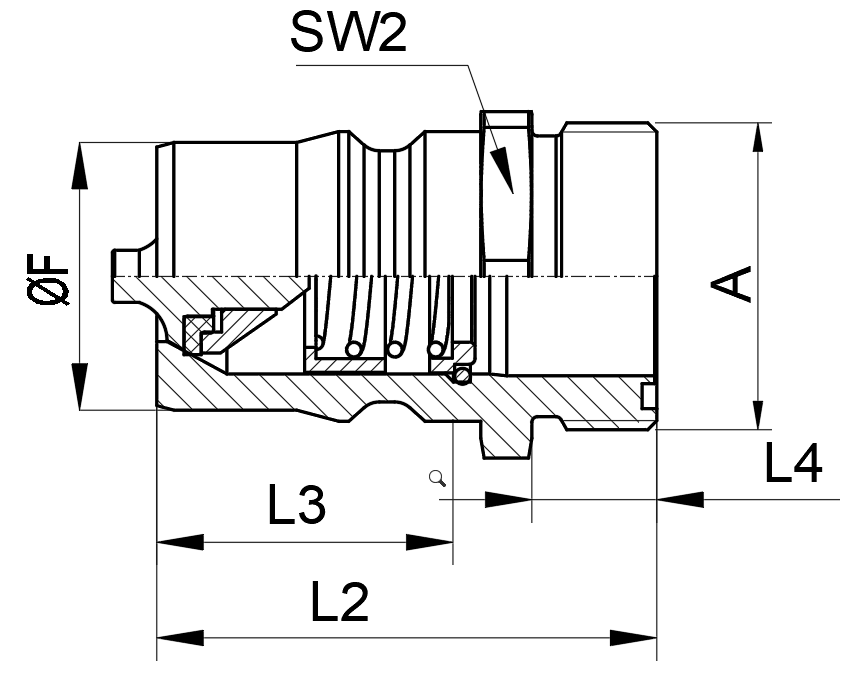

| 外螺纹DIN 3852 /Female Thread DIN 3852 | ||||||||||||||
| ISO | A部分 Port A | 尺寸 | 母头 | 重量 | 公头 | 重量 | ||||||||
| Dimensions(mm) | Female Body | Weight | Male Tip | Weight | ||||||||||
| D | L1 | L2 | L3 | L4 | ØE | ØF | SW1 | SW2 | Part Numbers | (g) ca | Part Numbers | (g) ca | ||
| 6.3 | M18×1.5 | 35 | 21.5 | 9 | 14.2 | 19 | RBVX06-M-M18X1.5 | 39 | ||||||
| 12.5 | M27X1.5 | 44 | 27.2 | 11 | 23.55 | 29 | RBVX13-M-M27X1.5/A | 112 | ||||||
| M27X1.5 | 59.5 | 27.2 | 19 | 23.55 | 29 | RBVX13-M-M27X1.5/B | 132 | |||||||
