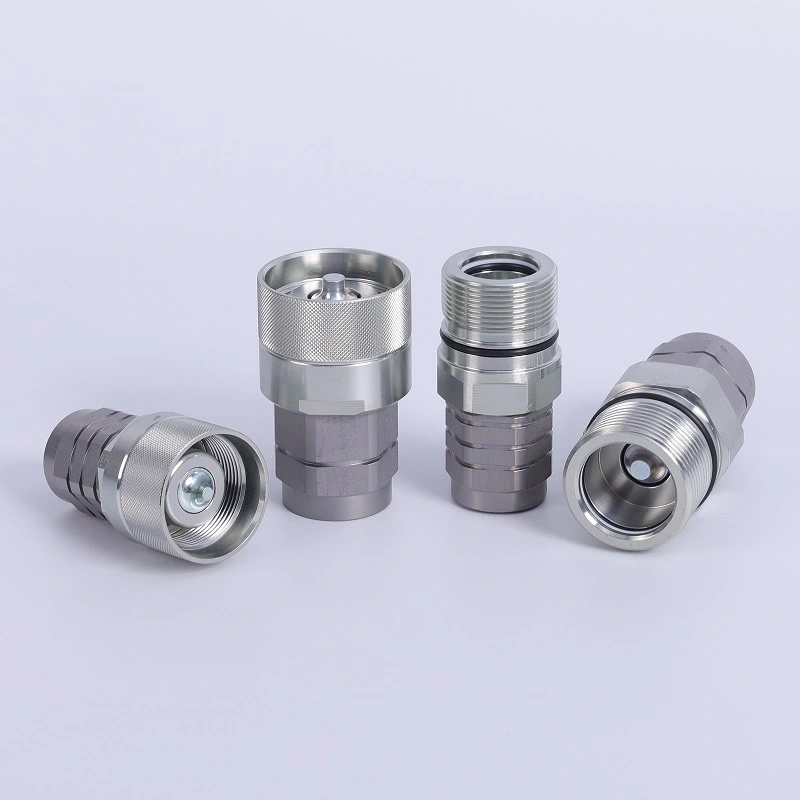

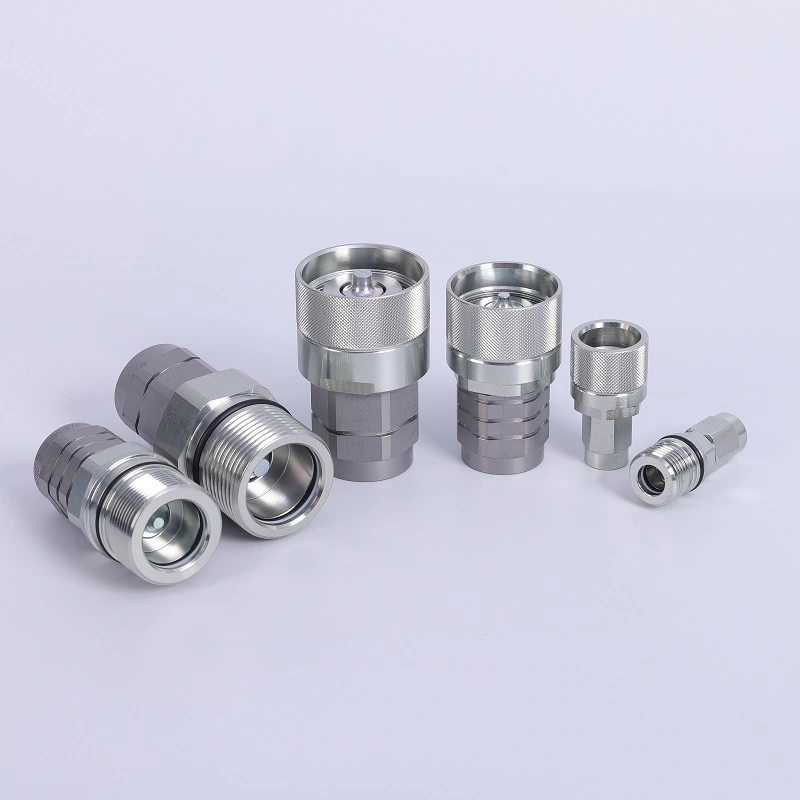

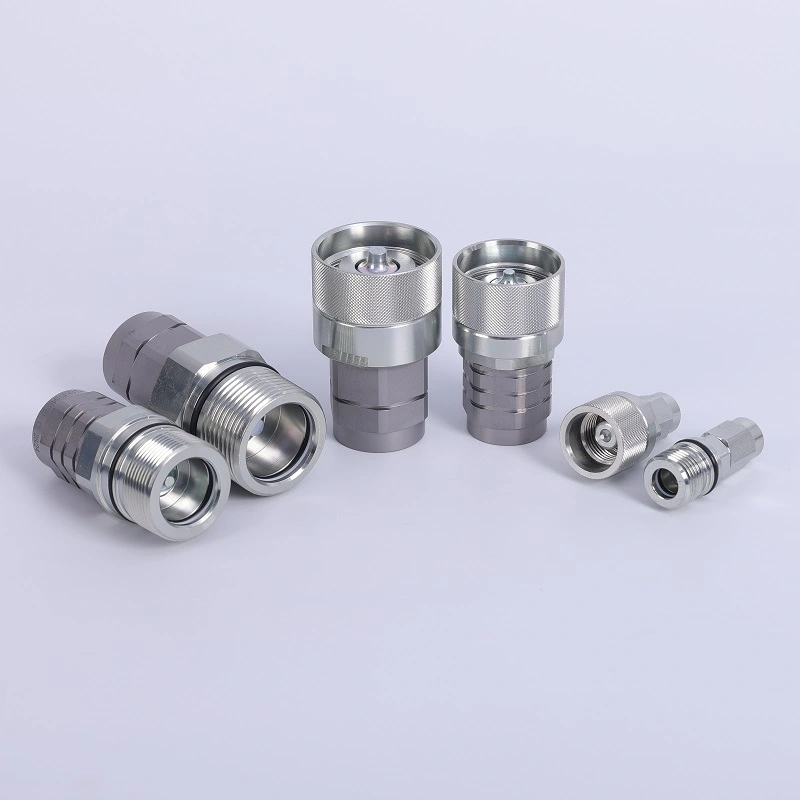

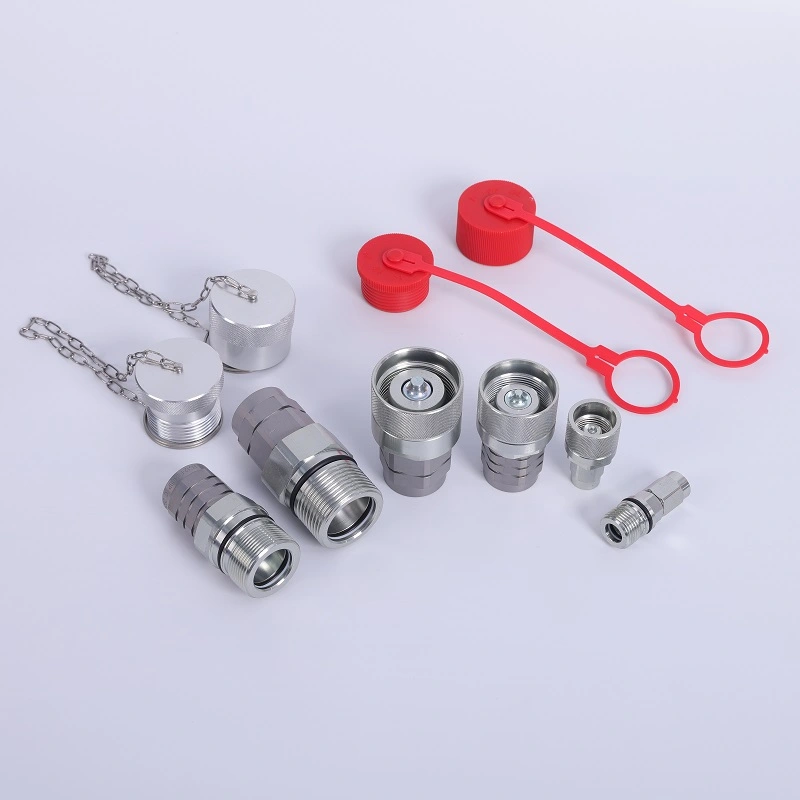

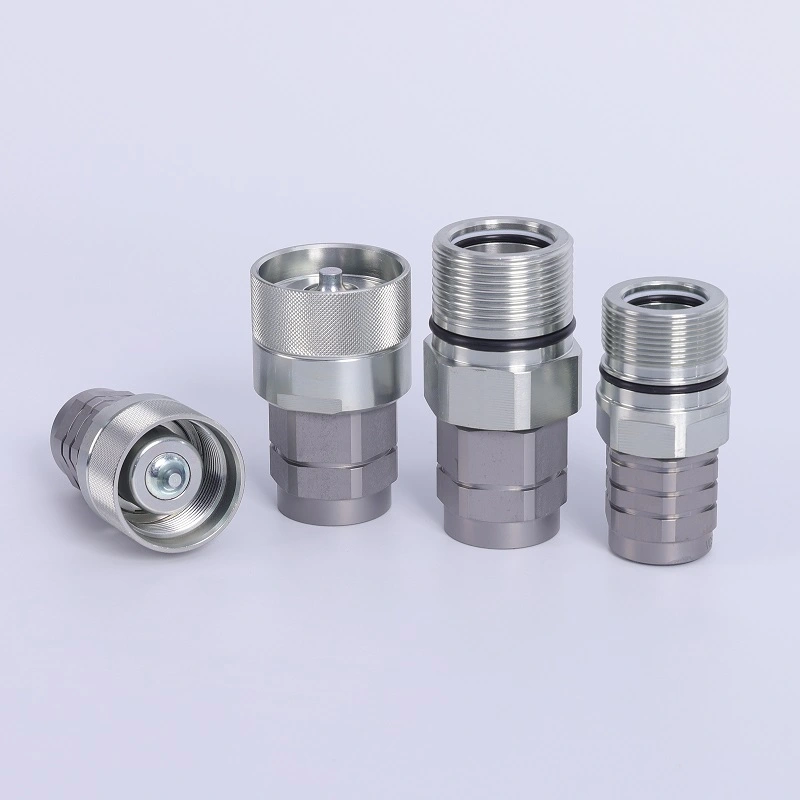

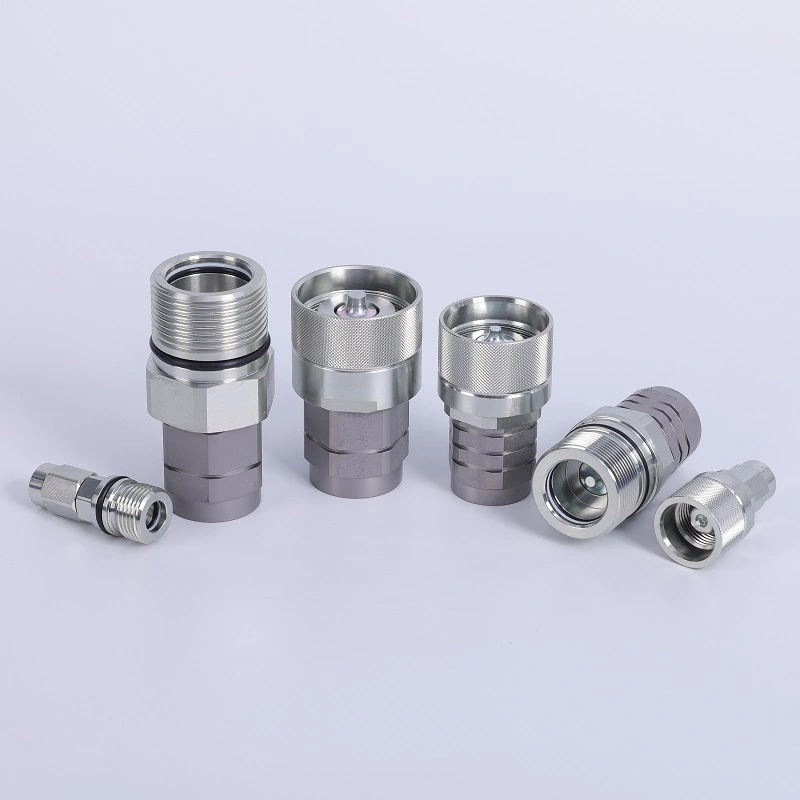

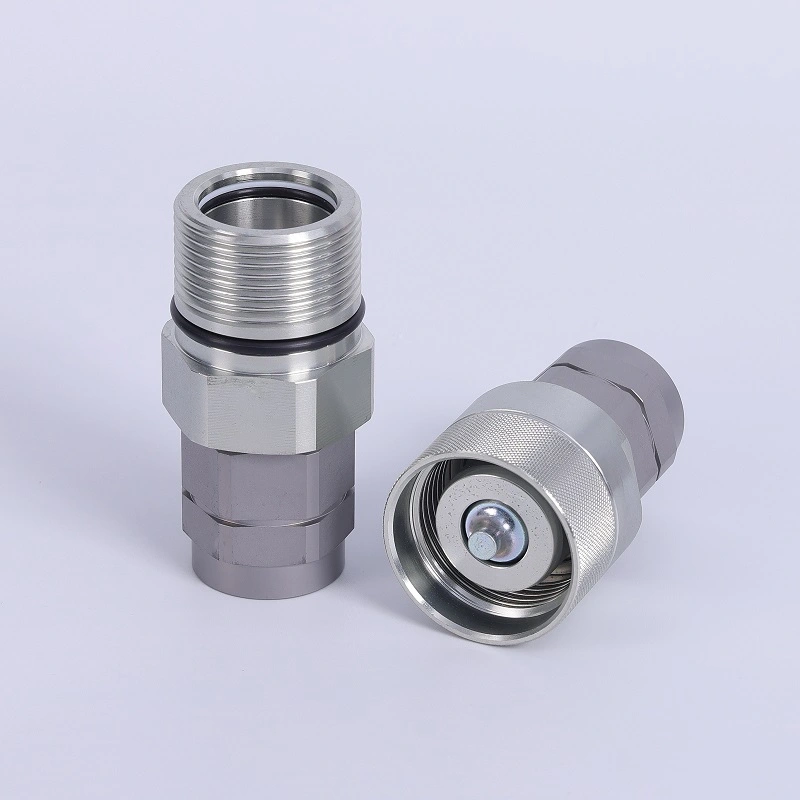

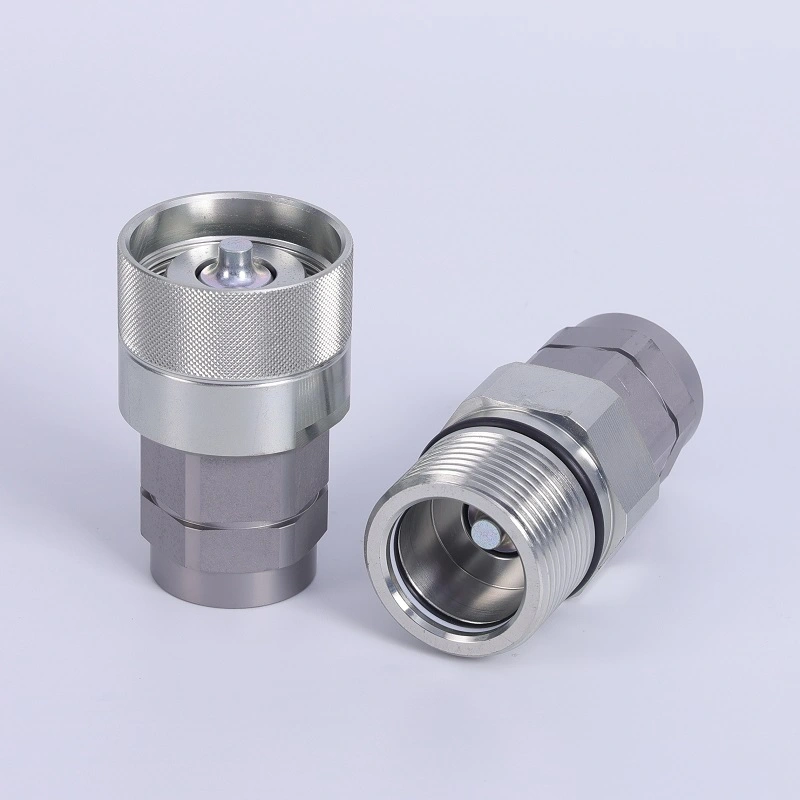

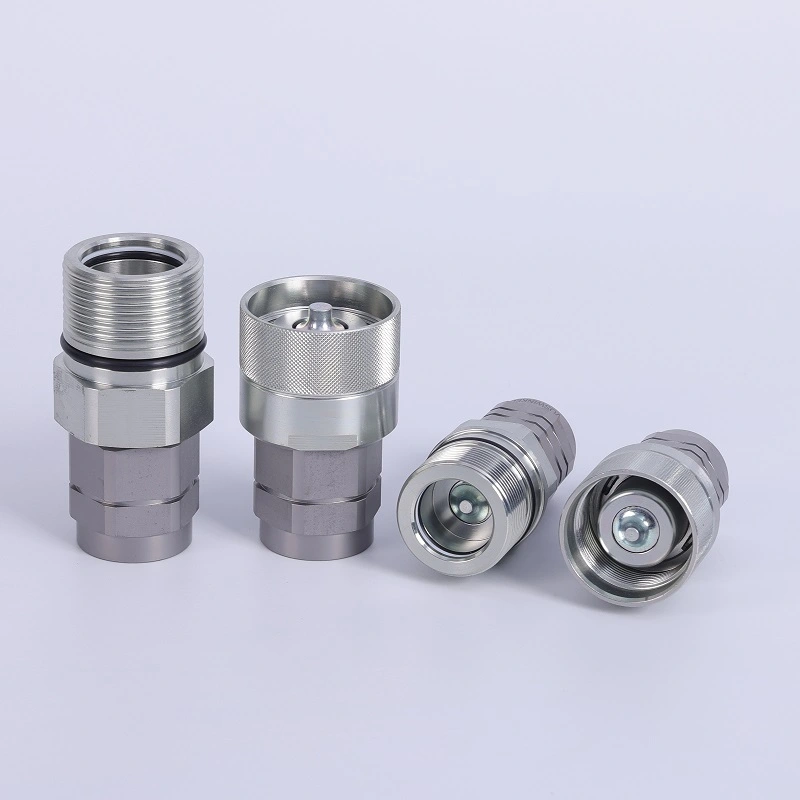

HS ISO 14541 Series Screw On Quick Release Coupling

Share It :

ISO 14541 compliant screw-on quick release couplings providing reliable, leak-free connections for high-pressure hydraulic systems.

Feature of HS ISO 14541 Series Screw On Quick Release Coupling

Standard: ISO 14541
Occlusion: Poppet
Locking: Screw
Optional material: Carbon steel
Finishing Zn-Fe (Cr III)
Thread: BSP – NPT – SAE
Standard seals: NBR
Working temperature: -25 ℃ +100 ℃
Optional seals: FKM, EPDM or more
Working pressure: 300-450 bar
Operation under pressure: Allowed (Both male and female bodies)
Max operating pressure under pressure: Working pressure

Specification of HS ISO 14541 Series Screw On Quick Release Coupling

Nominal size		Working pressure	Rated flow (ISO)	Max flow rate	Burst pressure			Fluid spillage
Nominal size		Working pressure	Rated flow (ISO)	Max flow rate	Male	Female	Coupled	Fluid spillage
HS	ISO	Mpa	l/min	1/min	Mpa	Mpa	Mpa	cc
HS04	6.3	45	12	17	190	270	250	0.8
HS08	10	40	23	46	130	150	180	1.9
HS10	12.5	40	45	90	126	150	140	2.7
HS12	19	35	106	190	120	130	140	9.3
HS20	25	35	189	280	120	130	140	16
HS25	31.5	35	288	480	100	100	100	30

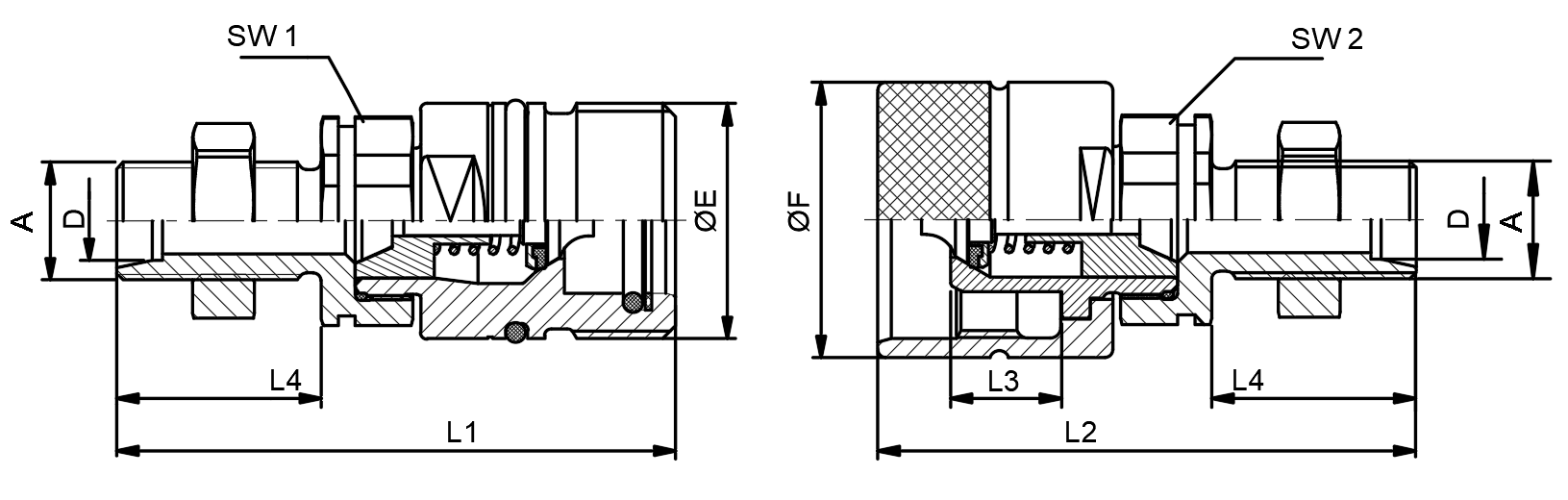

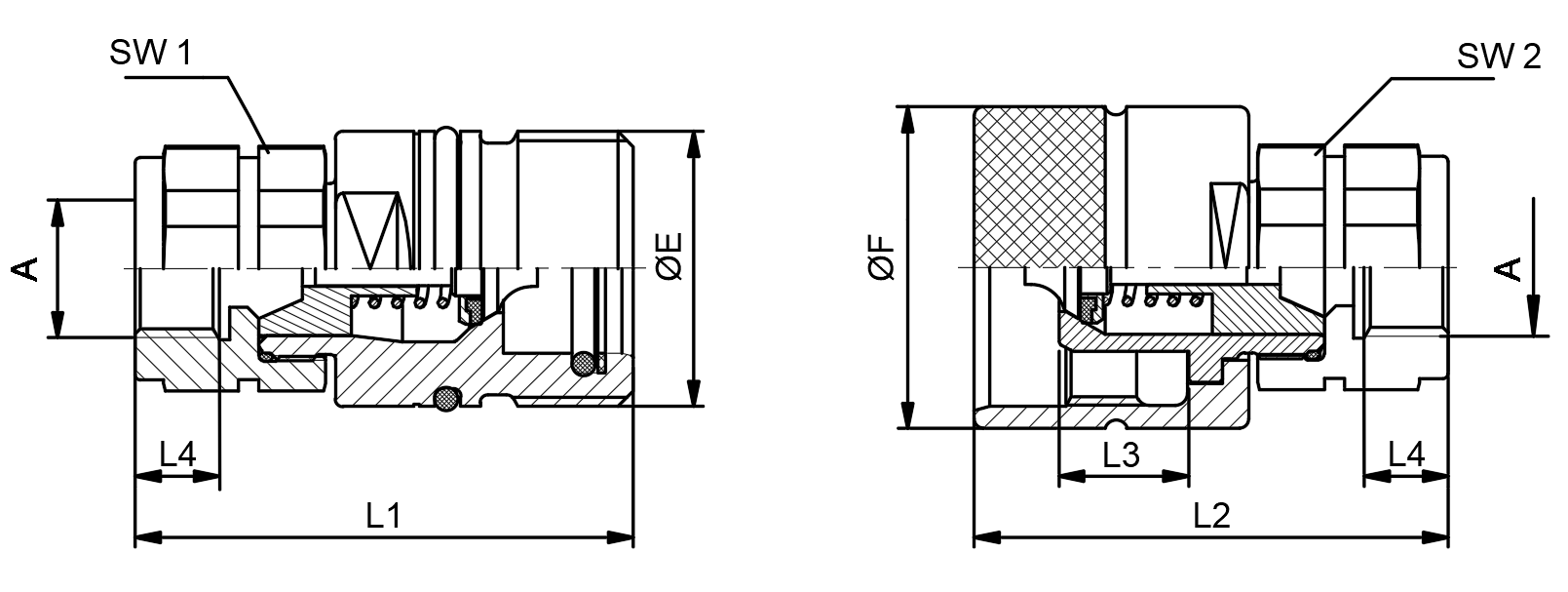

Parameters of HS ISO 14541 Series Screw On Quick Release Coupling

内螺纹DIN 3852 /ANSI B1.20.1 /Female Thread DIN 3852 /ANSI B1.20.1
ISO	A部分 Port A	尺寸									母头	重量	公头	重量
		Dimensions(mm)									Female Body	Weight	Male Tip	Weight
		D	L1	L2	L3	L4	ØE	ØF	SW1	SW2	Part Numbers	(g) ca	Part Numbers	(g) ca
6	G 1/4		61.7	58.9	14.8	13	M24*2	32	19	19	HS04-F-14BSP	120	HS04-M-14BSP	182
6	NPT 1/4		61.7	58.9	14.8	13	M24*2	32	19	19	HS04-F-14NPT	120	HS04-M-14NPT	190
10	G 1/4		62.8	60.5	15	13	M28*2	34	22	22	HS08-F-14BSP	168	HS08-M-14BSP	178
	NPT 1/4		62.8	60.5	15	13	M28*2	34	22	22	HS08-F-14NPT	170	HS08-M-14NPT	180
	G 3/8		62.8	60.5	15	13	M28*2	34	22	22	HS08-F-38BSP	160	HS08-M-38BSP	170
	NPT 3/8		62.8	60.5	15	13	M28*2	34	22	22	HS08-F-38NPT	162	HS08-M-38NPT	172
12.5	G 3/8		72.1	67	17	13	M36*2	42	27	27	HS10-F-38BSP	312	HS10-M-38BSP	261
	NPT 3/8		72.1	67	17	13	M36*2	42	27	27	HS10-F-38NPT	286	HS10-M-38NPT	264
	G 1/2		74.1	69	17	16	M36*2	42	27	27	HS10-F-12BSP	292	HS10-M-12BSP	270
	NPT 1/2		74.1	69	17	16	M36*2	42	27	27	HS10-F-12NPT	296	HS10-M-12NPT	274
19	G 1/2		87.5	78	21	16	M42*2	48	36	36	HS12-F-12BSP	526	HS12-M-12BSP	490
	NPT 1/2		87.5	78	21	16	M42*2	48	36	36	HS12-F-12NPT	550	HS12-M-12NPT	476
	G 3/4		89.5	80	21	18	M42*2	48	36	36	HS12-F-34BSP	636	HS12-M-34BSP	480
	NPT 3/4		89.5	80	21	18	M42*2	48	36	36	HS12-F-34NPT	642	HS12-M-34NPT	495
25	G 3/4		105.6	88.4	26.5	18	M48*3	55	41	41	HS20-F-34BSP	803	HS20-M-34BSP	625
	NPT 3/4		105.6	88.4	26.5	18	M48*3	55	41	41	HS20-F-34NPT	810	HS20-M-34NPT	631
	G 1		105.6	88.4	26.5	20	M48*3	55	41	41	HS20-F-1BSP	780	HS20-M-1BSP	601
	NPT 1		105.6	88.4	26.5	20	M48*3	55	41	41	HS20-F-1NPT	780	HS20-M-1NPT	601
	G 114		107.6	90.4	26.5	22	M48*3	55	50	50	HS20-F-114BSP	792	HS20-M-114BSP	614
31.5	G1 1/4		125	122.5	36.5	22	M70*3	85	55	80	HS25-F-114BSP	1630	HS25-M-114BSP	2329
31.5	G1 1/2		128	125.5	36.5	24	M70*3	85	55	80	HS25-F-112BSP	1715	HS25-M-112BSP	2260

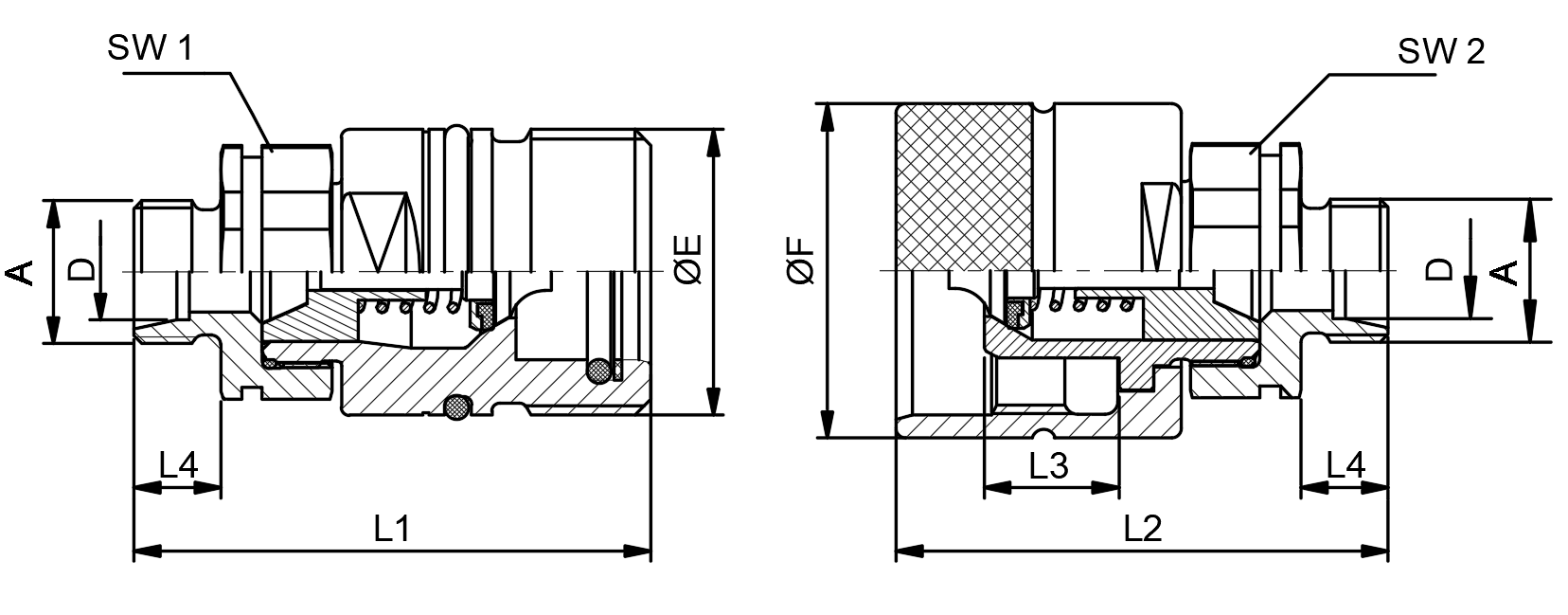

Structure of HS ISO 14541 Series Screw On Quick Release Coupling

外螺纹24°锥形DIN 3861 /Male stud with type W bore (24°) to DIN 3861
ISO	A部分 Port A	尺寸									母头	重量	公头	重量
		Dimensions(mm)									Female Body	Weight	Male Tip	Weight
		D	L1	L2	L3	L4	ØE	ØF	SW1	SW2	Part Numbers	(g) ca	Part Numbers	(g) ca
6	M14*1.5	8L	58.7	55.9	14.8	10	M24*2	32	19	19	HS04-F-L0814	123	HS04-M-L0814	182
	M16*1.5	10L	59.7	56.9	14.8	11	M24*2	32	19	19	HS04-F-L1016	125	HS04-M-L1016	184
	M16*1.5	8S	60.7	57.9	14.8	12	M24*2	32	19	19	HS04-F-S0816	128	HS04-M-S0816	187
	M18*1.5	10S	60.7	57.9	14.8	12	M24*2	32	22	22	HS04-F-S1018	136	HS04-M-S1018	195
10	M14*1.5	8L	60.8	58.5	15	10	M28*2	34	22	22	HS08-F-L0814	144	HS08-M-L0814	158
	M16*1.5	10L	61.8	59.5	15	11	M28*2	34	22	22	HS08-F-L1016	158	HS08-M-L1016	169
	M18*1.5	12L	61.8	59.5	15	11	M28*2	34	22	22	HS08-F-L1218	160	HS08-M-L1218	172
	M16*1.5	8S	62.8	60.5	15	12	M28*2	34	22	22	HS08-F-S0816	163	HS08-M-S0816	174
	M18*1.5	10S	62.8	60.5	15	12	M28*2	34	22	22	HS08-F-S1018	164	HS08-M-S1018	176
	M20*1.5	12S	62.8	60.5	15	12	M28*2	34	22	22	HS08-F-S1220	154	HS08-M-S1220	179
12.5	M16*1.5	10L	68.8	63.7	17	11	M36*2	42	27	27	HS10-F-L1016	283	HS10-M-L1016	261
	M18*1.5	12L	68.8	63.7	17	11	M36*2	42	27	27	HS10-F-L1218	286	HS10-M-L1218	264
	M22*1.5	15L	69.8	64.7	17	12	M36*2	42	27	27	HS10-F-L1522	290	HS10-M-L1522	268
	M26*1.5	18L	69.8	64.7	17	12	M36*2	42	30	30	HS10-F-L1826	286	HS10-M-L1826	264
	M18*1.5	10S	69.8	64.7	17	12	M36*2	42	27	27	HS10-F-S1018	290	HS10-M-S1018	268
	M20*1.5	12S	69.8	64.7	17	12	M36*2	42	27	27	HS10-F-S1220	293	HS10-M-S1220	271
	M22*1.5	14S	71.8	66.7	17	14	M36*2	42	27	27	HS10-F-S1422	296	HS10-M-S1422	274
	M24*1.5	16S	71.8	66.7	17	14	M36*2	42	30	30	HS10-F-S1624	300	HS10-M-S1624	278
	M30*2	20S	73.8	68.7	17	16	M36*2	42	36	36	HS10-F-S2030	306	HS10-M-S2030	284
19	M18*1.5	12L	82	72.5	21	11	M42*2	48	36	36	HS12-F-L1218	474	HS12-M-L1218	402
	M22*1.5	15L	83	73.5	21	12	M42*2	48	36	36	HS12-F-L1522	480	HS12-M-L1522	408
	M26*1.5	18L	83	73.5	21	12	M42*2	48	36	36	HS12-F-L1826	492	HS12-M-L1826	420
	M30*2	22L	85	75.5	21	14	M42*2	48	36	36	HS12-F-L2230	504	HS12-M-L2230	432
	M24*1.5	16S	85	75.5	21	14	M42*2	48	36	36	HS12-F-S1624	486	HS12-M-S1624	414
	M30*2	20S	87	77.5	21	16	M42*2	48	36	36	HS12-F-S2030	512	HS12-M-S2030	440
25	M26*1.5	18L	97.6	80.4	26.5	12	M48*3	55	41	41	HS20-F-L1826	715	HS20-M-L1826	622
	M30*2	22L	99.6	82.4	26.5	14	M48*3	55	41	41	HS20-F-L2230	719	HS20-M-L2230	628
	M36*2	28L	99.6	82.4	26.5	14	M48*3	55	41	41	HS20-F-L2836	724	HS20-M-L2836	634
	M30*2	20S	101.6	84.4	26.5	16	M48*3	55	41	41	HS20-F-S2030	737	HS20-M-S2030	645
	M36*2	25S	103.6	86.4	26.5	18	M48*3	55	41	41	HS20-F-S2536	757	HS20-M-S2536	665
	M42*2	30S	105.6	88.4	26.5	20	M48*3	55	50	50	HS20-F-S3042	772	HS20-M-S3042	671
31.5	M36*2	28L	119	116.5	36.5	14	M70*3	85	65	65	HS25-F-L2836	1620	HS25-M-L2836	2150
	M45*2	35L	121	118.5	36.5	16	M70*3	85	65	65	HS25-F-L3545	1642	HS25-M-L3545	2172
	M52*2	42L	121	118.5	36.5	16	M70*3	85	65	65	HS25-F-L4252	1651	HS25-M-L4252	2182
	M42*2	30S	125	122.5	36.5	20	M70*3	85	65	65	HS25-F-S3042	1664	HS25-M-S3042	2195
	M52*2	38S	127	124.5	36.5	22	M70*3	85	65	65	HS25-F-S3852	1673	HS25-M-S3852	2202

Parameters of HS ISO 14541 Series Screw On Quick Release Coupling

外螺纹24°锥形DIN 3861带隔板 /Male stud with type W bore (24°) to DIN 3861
ISO	A部分 Port A	尺寸									母头	重量	公头	重量
		Dimensions(mm)									Female Body	Weight	Male Tip	Weight
		D	L1	L2	L3	L4	ØE	ØF	SW1	SW2	Part Numbers	(g) ca	Part Numbers	(g) ca
6	M14*1.5	8L	73.7	70.9	14.8	25	M24*2	32	19	19	HS04-F-N0814	139	HS04-M-N0814	198
	M16*1.5	10L	74.7	71.9	14.8	26	M24*2	32	19	19	HS04-F-N1016	145	HS04-M-N1016	203
	M16*1.5	8S	75.7	72.9	14.8	27	M24*2	32	19	19	HS04-F-T0816	148	HS04-M-T0816	207
	M18*1.5	10S	75.7	72.9	14.8	27	M24*2	32	22	22	HS04-F-T1018	156	HS04-M-T1018	215
10	M14*1.5	8L	75.8	73.5	15	25	M28*2	34	22	22	HS08-F-N0814	164	HS08-M-N0814	178
	M16*1.5	10L	76.8	74.5	15	26	M28*2	34	22	22	HS08-F-N1016	188	HS08-M-N1016	199
	M18*1.5	12L	76.8	74.5	15	26	M28*2	34	22	22	HS08-F-N1218	190	HS08-M-N1218	301
	M16*1.5	8S	77.8	75.5	15	27	M28*2	34	22	22	HS08-F-T0816	193	HS08-M-T0816	303
	M18*1.5	10S	77.8	75.5	15	27	M28*2	34	22	22	HS08-F-T1018	195	HS08-M-T1018	305
	M20*1.5	12S	77.8	75.5	15	27	M28*2	34	22	22	HS08-F-T1220	185	HS08-M-T1220	295
12.5	M16*1.5	10L	83.8	78.7	17	26	M36*2	42	27	27	HS10-F-N1016	308	HS10-M-N1016	286
	M18*1.5	12L	83.8	78.7	17	26	M36*2	42	27	27	HS10-F-N1218	311	HS10-M-N1218	289
	M22*1.5	15L	84.8	79.7	17	27	M36*2	42	27	27	HS10-F-N1522	315	HS10-M-N1522	293
	M26*1.5	18L	84.8	79.7	17	27	M36*2	42	30	30	HS10-F-N1826	311	HS10-M-N1826	289
	M18*1.5	10S	84.8	79.7	17	27	M36*2	42	27	27	HS10-F-T1018	316	HS10-M-T1018	294
	M20*1.5	12S	84.8	79.7	17	27	M36*2	42	27	27	HS10-F-T1220	318	HS10-M-T1220	297
	M22*1.5	14S	86.8	81.7	17	29	M36*2	42	27	27	HS10-F-T1422	322	HS10-M-T1422	301
	M24*1.5	16S	86.8	81.7	17	29	M36*2	42	30	30	HS10-F-T1624	326	HS10-M-T1624	305
	M30*2	20S	91.8	86.7	17	34	M36*2	42	36	36	HS10-F-T2030	332	HS10-M-T2030	310
19	M18*1.5	12L	97	87.5	21	26	M42*2	48	36	36	HS12-F-N1218	486	HS12-M-N1218	414
	M22*1.5	15L	98	88.5	21	27	M42*2	48	36	36	HS12-F-N1522	492	HS12-M-N1522	422
	M26*1.5	18L	98	88.5	21	27	M42*2	48	36	36	HS12-F-N1826	504	HS12-M-N1826	434
	M30*2	22L	107	97.5	21	36	M42*2	48	36	36	HS12-F-N2230	516	HS12-M-N2230	447
	M24*1.5	16S	100	90.5	21	29	M42*2	48	36	36	HS12-F-T1624	498	HS12-M-T1624	426
	M30*2	20S	107	97.5	21	36	M42*2	48	36	36	HS12-F-T2030	524	HS12-M-T2030	442
25	M26*1.5	18L	117.6	100.1	26.5	32	M48*3	55	41	41	HS20-F-N1826	765	HS20-M-N1826	671
	M30*2	22L	119.6	102.4	26.5	34	M48*3	55	41	41	HS20-F-N2230	769	HS20-M-N2230	677
	M36*2	28L	119.6	102.4	26.5	34	M48*3	55	41	41	HS20-F-N2836	764	HS20-M-N2836	683
	M30*2	20S	123.6	106.4	26.5	38	M48*3	55	41	41	HS20-F-T2030	776	HS20-M-T2030	695
	M36*2	25S	123.6	106.4	26.5	38	M48*3	55	41	41	HS20-F-T2536	798	HS20-M-T2536	714
	M42*2	30S	125.6	108.4	26.5	40	M48*3	55	50	50	HS20-F-T3042	813	HS20-M-T3042	727
31.5	M36*2	28L	139	136.5	36.5	34	M70*3	85	65	65	HS25-F-N2836	1772	HS25-M-N2836	2302
	M45*2	35L	141	138.5	36.5	36	M70*3	85	65	65	HS25-F-N3545	1792	HS25-M-N3545	2322
	M52*2	42L	141	138.5	36.5	36	M70*3	85	65	65	HS25-F-N4252	1802	HS25-M-N4252	2331
	M42*2	30S	145	142.5	36.5	40	M70*3	85	65	65	HS25-F-T3042	1815	HS25-M-T3042	2344
	M52*2	38S	145	142.5	36.5	40	M70*3	85	65	65	HS25-F-T3852	1824	HS25-M-T3852	2353
