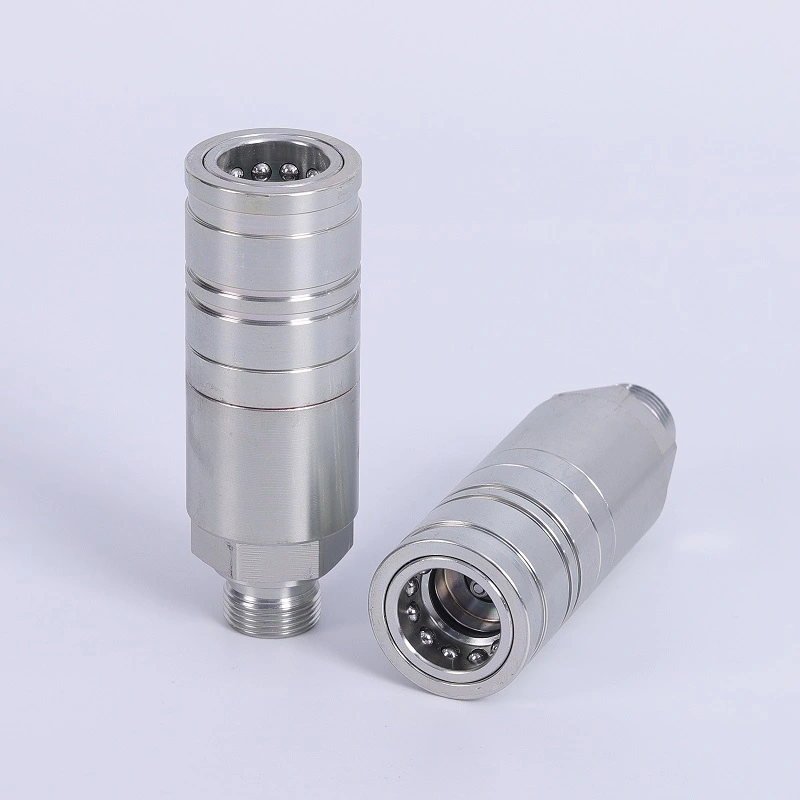

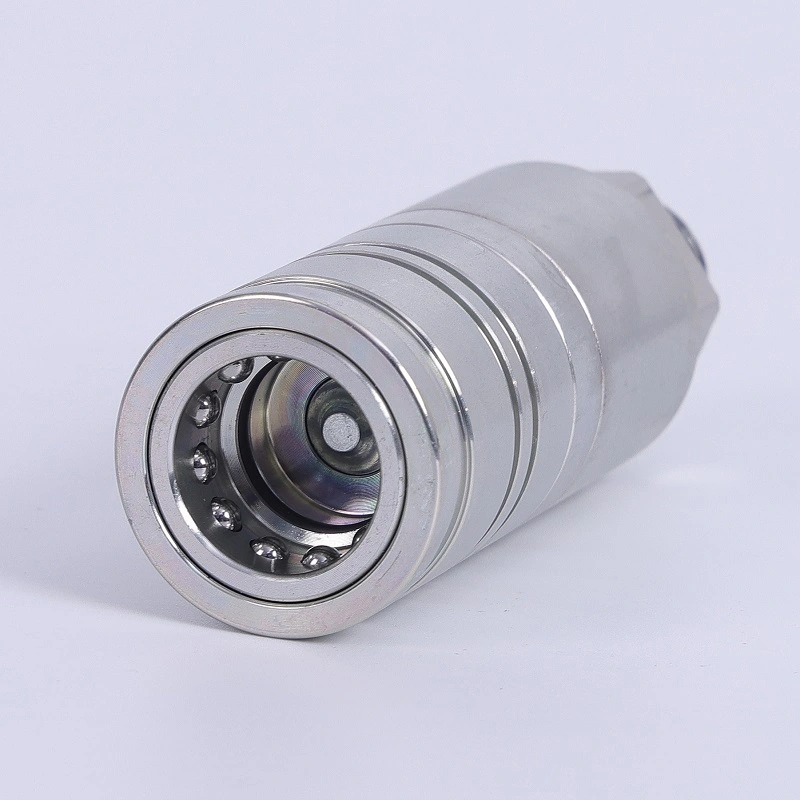

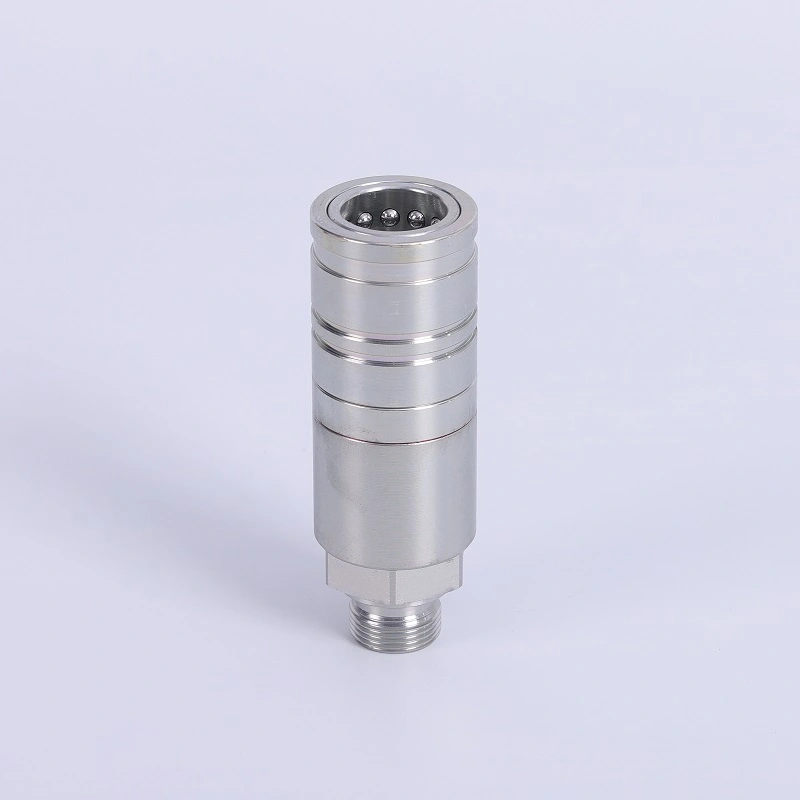

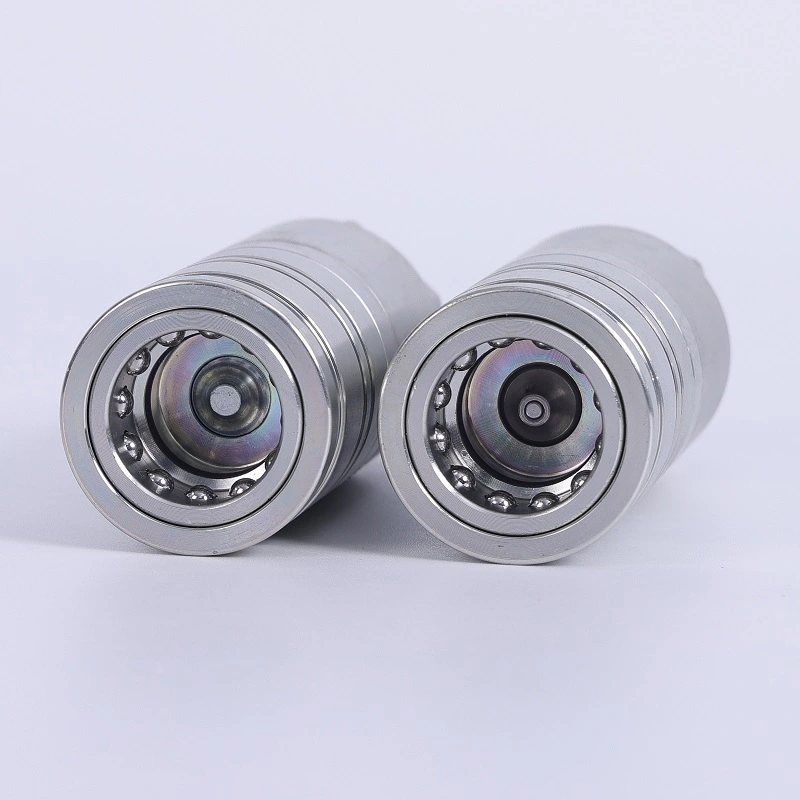

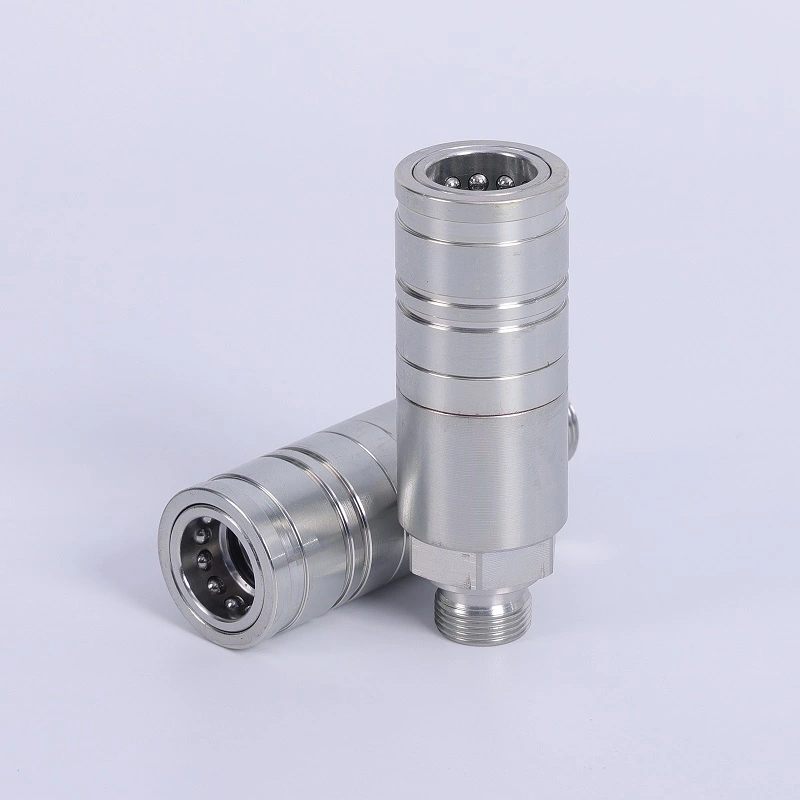

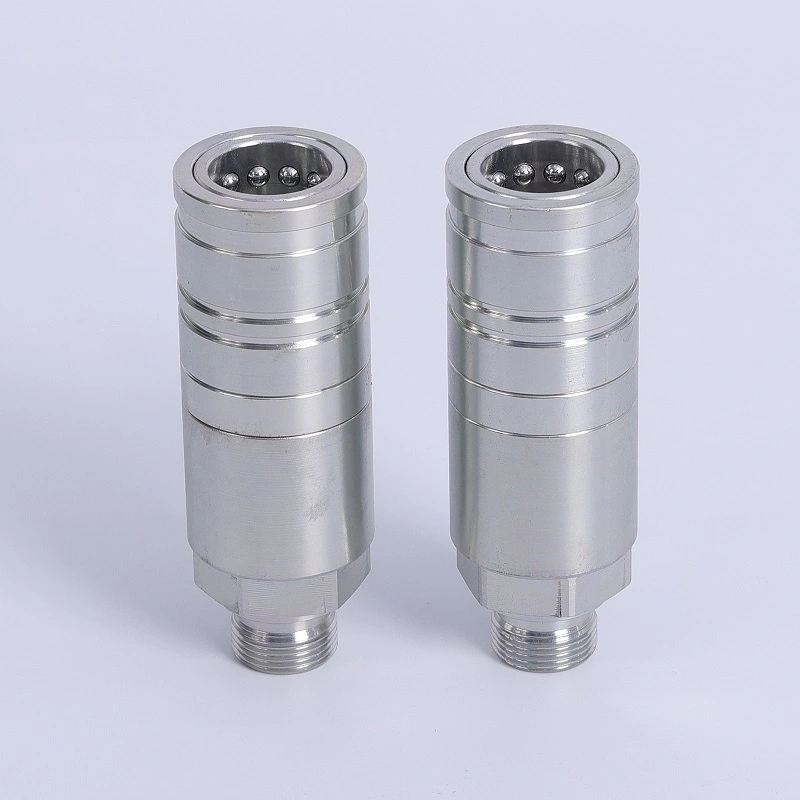

High-performance poppet couplers meeting ISO 7241-1A standards, providing secure, leak-free connections for various hydraulic systems.
Standard: ISO 7241-1 A
Sleeve: double-acting push-pull
Occlusion: Poppet
Locking: Radial balls
Optional material: Carbon steel
Finishing Zn-Fe (Cr III)
Thread: BSP – NPT –RC
Standard seals: NBR
Working temperature: -25 ℃ +100 ℃
Optional seals: FKM, EPDM or more
Working pressure: 250 bar
Operation under pressure: Allowed (Only male body)
Max operating pressure under
pressure: Working pressure

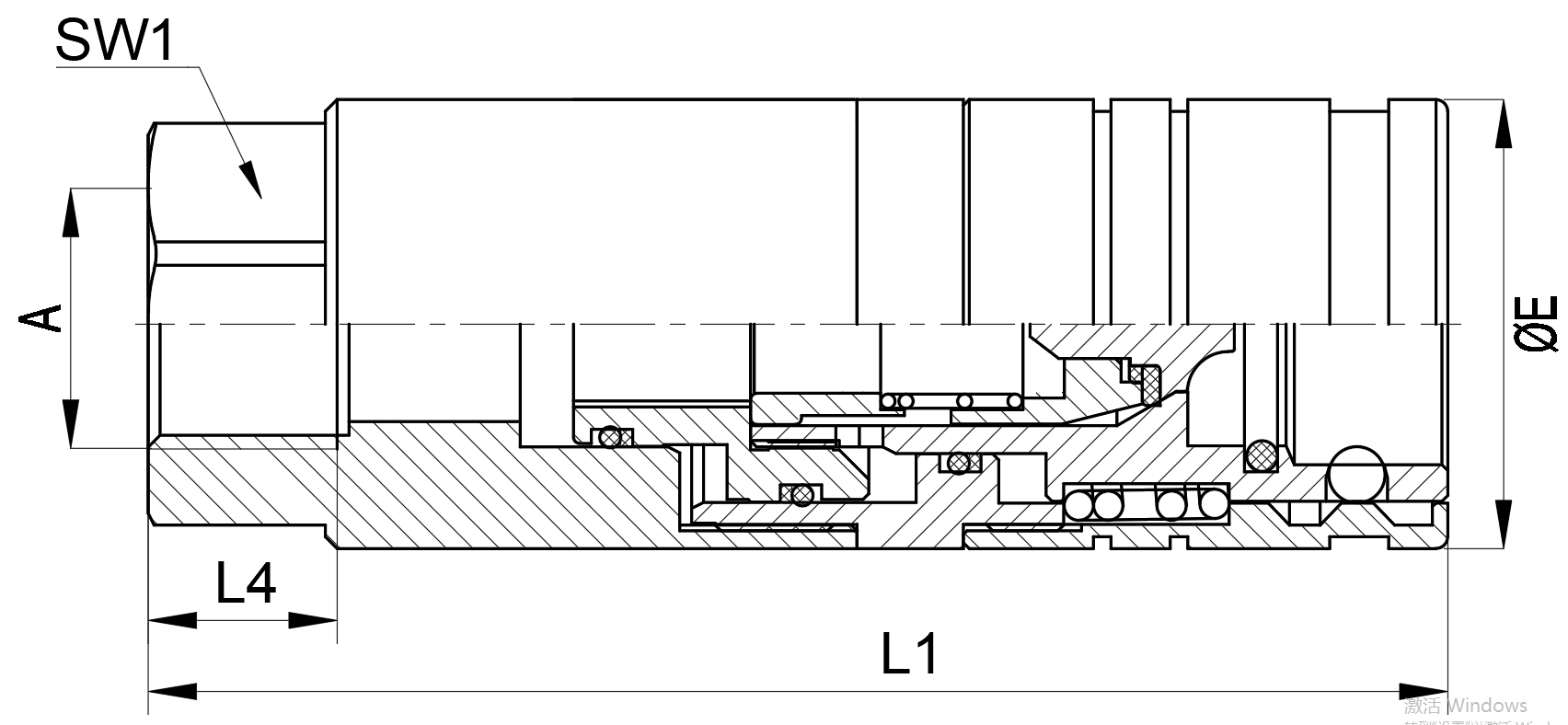

Nominal size | Working pressure | Rated flow (ISO) | Max flow rate | Burst pressure | Fluid spillage | |||
Male | Female | Coupled | ||||||
PPK | ISO | Mpa | 1/min | 1/min | Mpa | Mpa | Mpa | cc |
PPK13 | 12.5 | 25 | 45 | 90 | 110 | 190 | 2.7 |
内螺纹DIN 3852 /Female Thread DIN 3852 | ||||||||||||||
ISO | A部分 Port A | 尺寸 | 母头 | 重量 | 公头 | 重量 | ||||||||
Dimensions(mm) | Female Body | Weight | Male Tip | Weight | ||||||||||

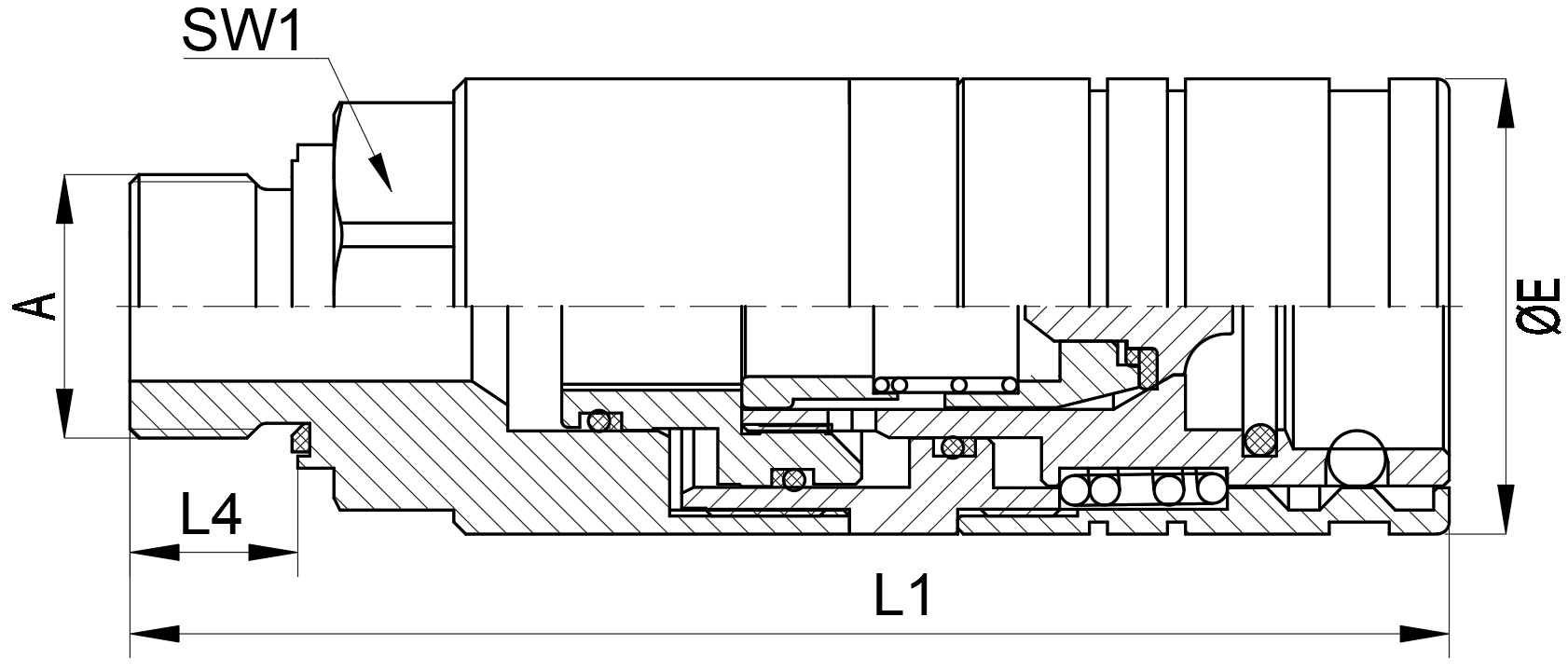

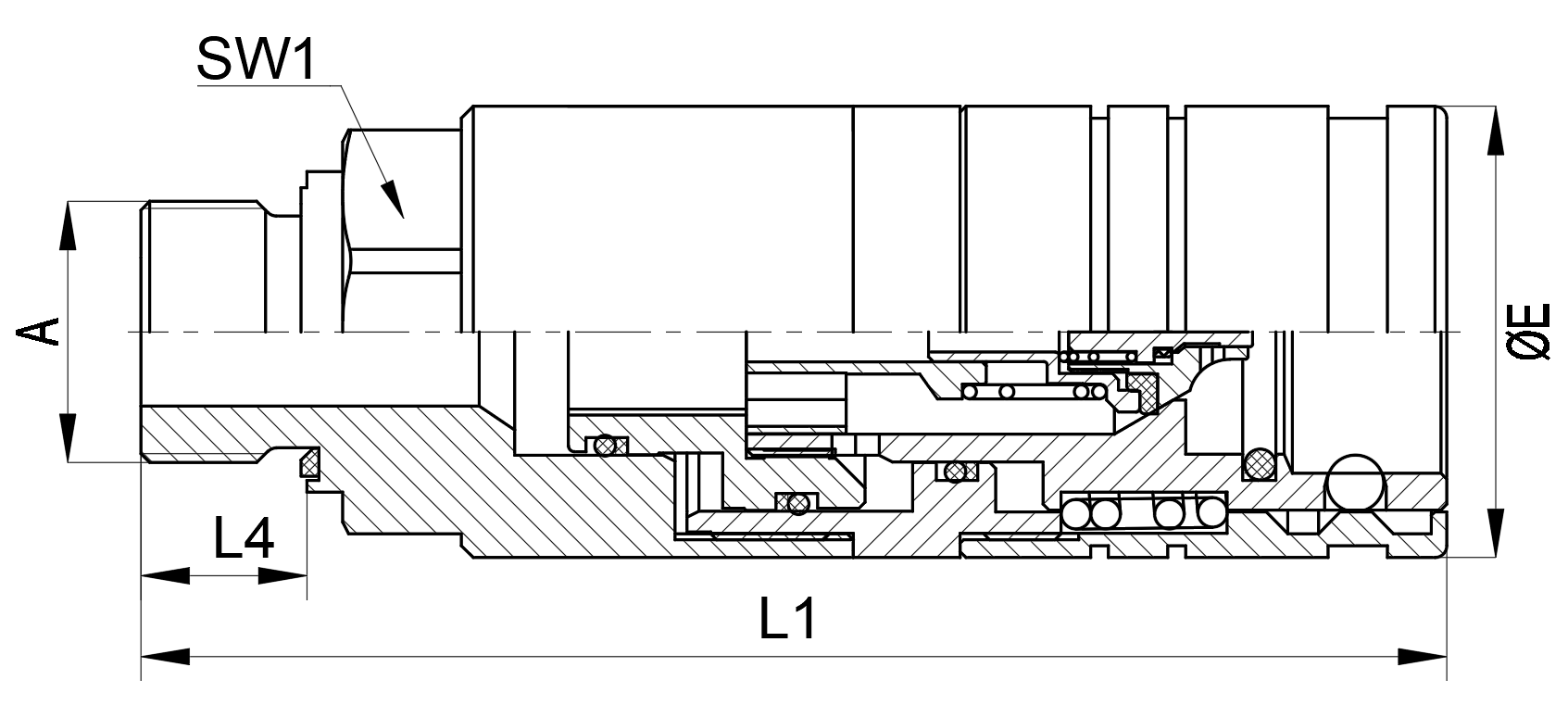

D | L1 | L2 | L3 | L4 | ØE | ØF | SW1 | SW2 | Part Numbers | (g) ca | Part Numbers | (g) ca | ||
12.5 | G1/2 | 107 | 16 | 38 | 32 | PPK13-F-12BSP | 604 | |||||||
NPT 1/2 | 107 | 16 | 38 | 32 | PPK13-F-12NPT | 608 |
外螺纹DIN 3852-11-E /Female Thread DIN 3852-11-E | ||||||||||||||
ISO | A部分 Port A | 尺寸 | 母头 | 重量 | 公头 | 重量 | ||||||||
Dimensions(mm) | Female Body | Weight | Male Tip | Weight | ||||||||||
D | L1 | L2 | L3 | L4 | ØE | ØF | SW1 | SW2 | Part Numbers | (g) ca | Part Numbers | (g) ca | ||
12.5 | M22x1,5 | 110 | 15 | 38 | 32 | PPK13-F-AMF22 | 596 | |||||||
M18x1,5 | 110 | 15 | 38 | 32 | PPK13-F-AMF18 | 619 |
外螺纹DIN 3852-11-E /Female Thread DIN 3852-11-E | ||||||||||||||
ISO | A部分 Port A | 尺寸 | 母头 | 重量 | 公头 | 重量 | ||||||||
Dimensions(mm) | Female Body | Weight | Male Tip | Weight | ||||||||||
D | L1 | L2 | L3 | L4 | ØE | ØF | SW1 | SW2 | Part Numbers | (g) ca | Part Numbers | (g) ca | ||
12.5 | M22x1,5 | 110 | 14 | 38 | 32 | PPK4 13-F-AME22 | 596 | |||||||
M18x1,5 | 110 | 14 | 38 | 32 | PPK4 13-F-AME18 | 619 |
