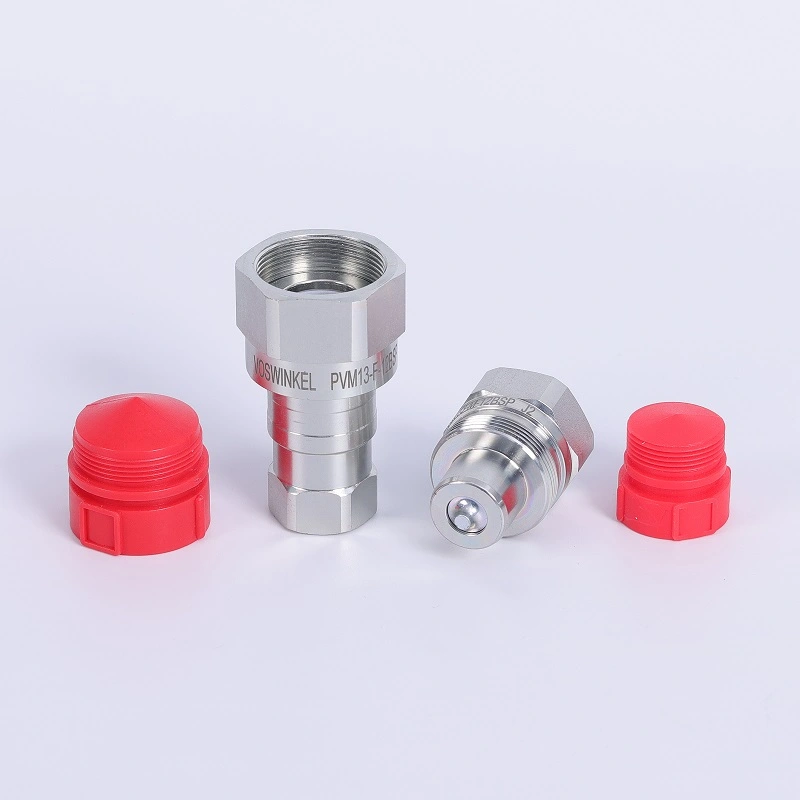

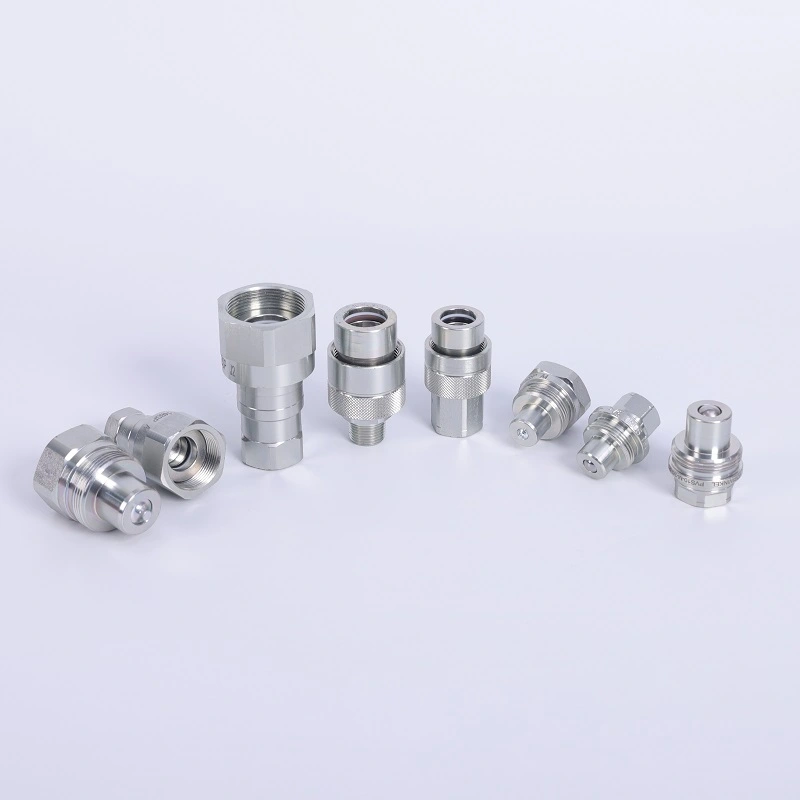

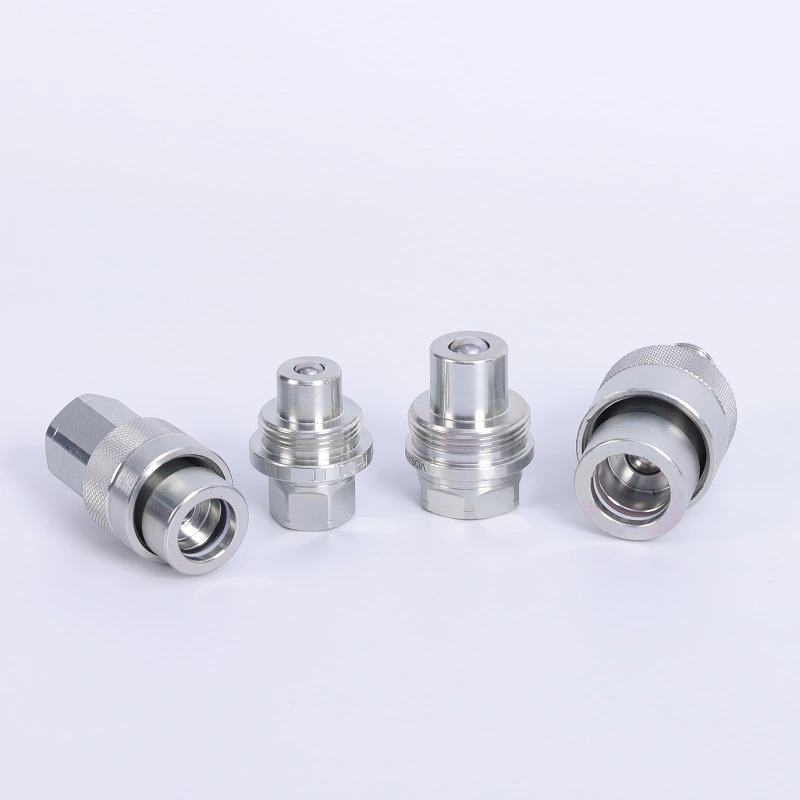

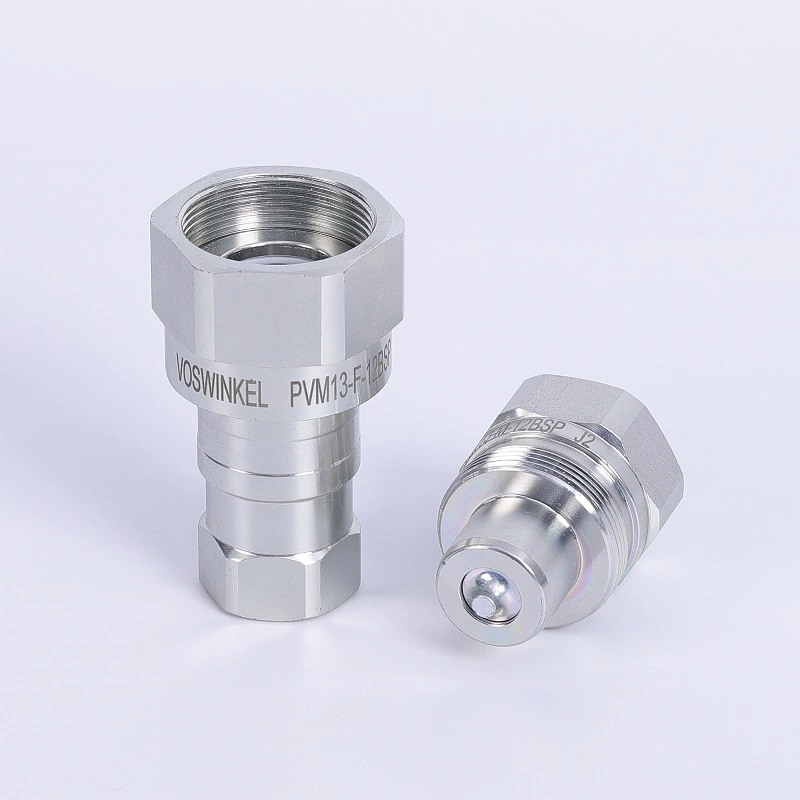

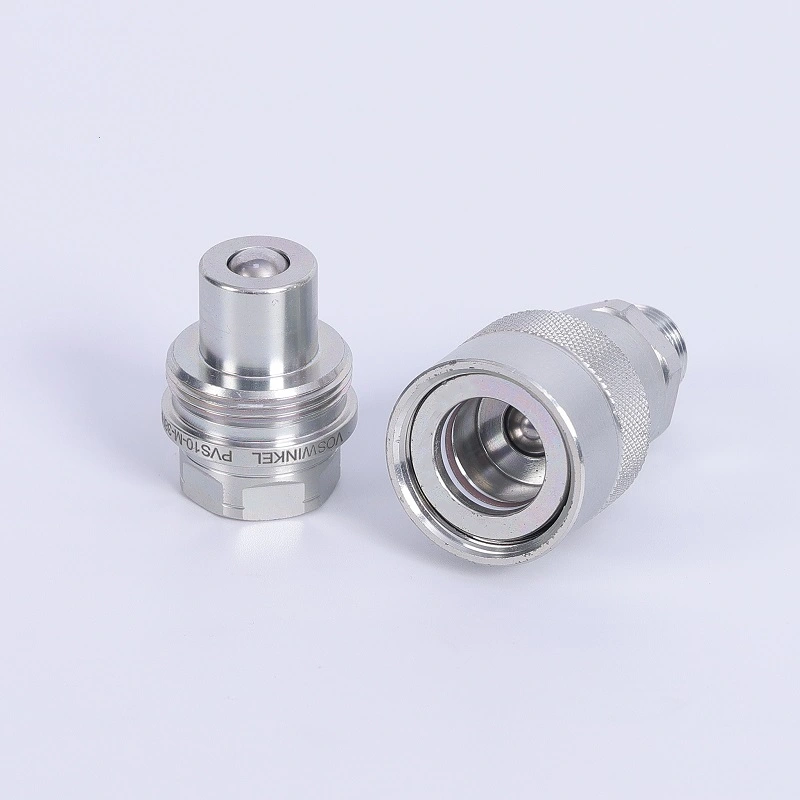

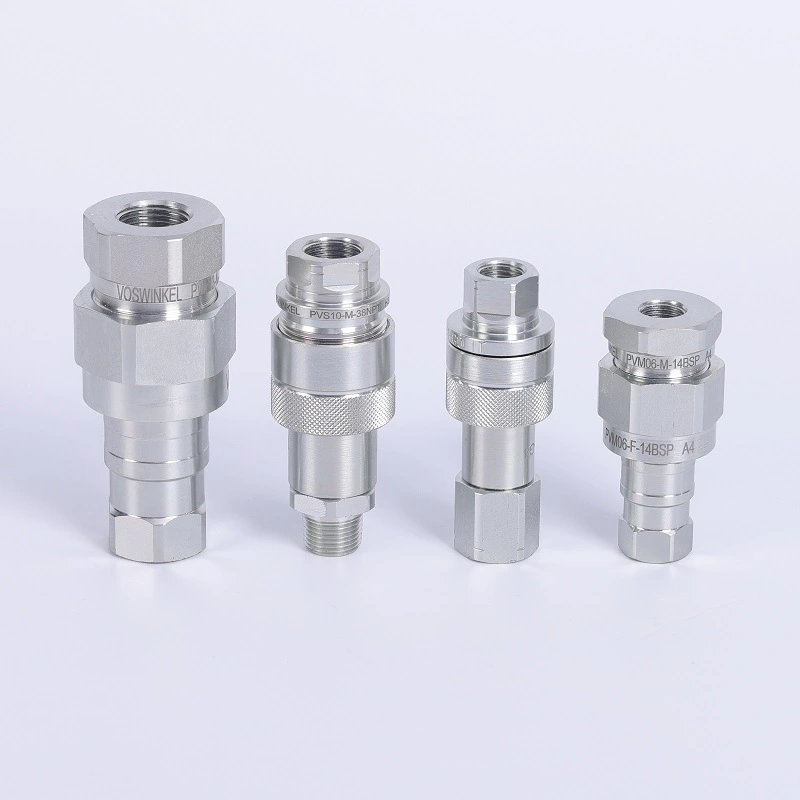

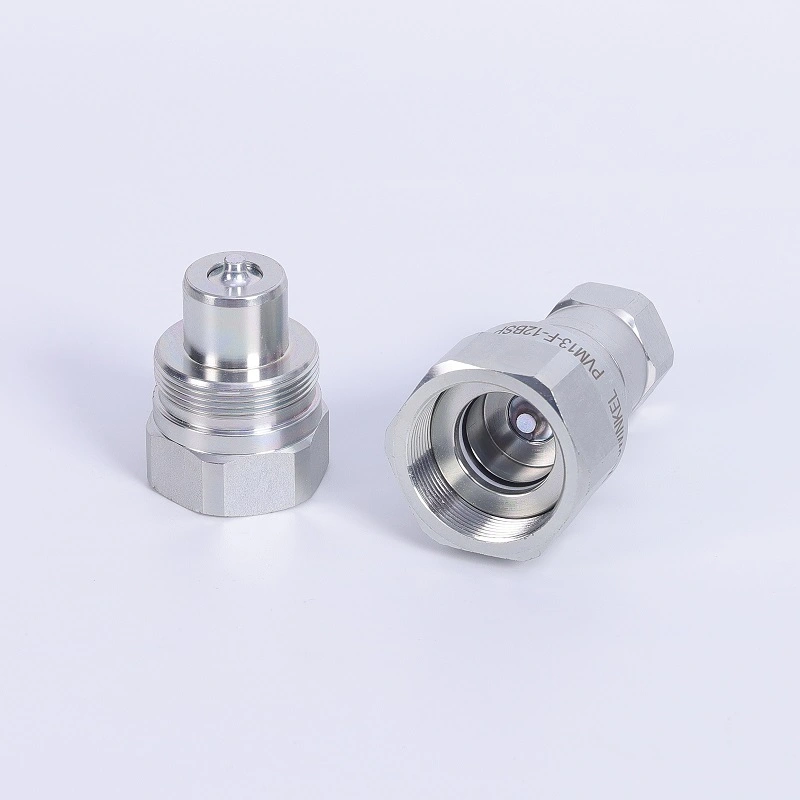

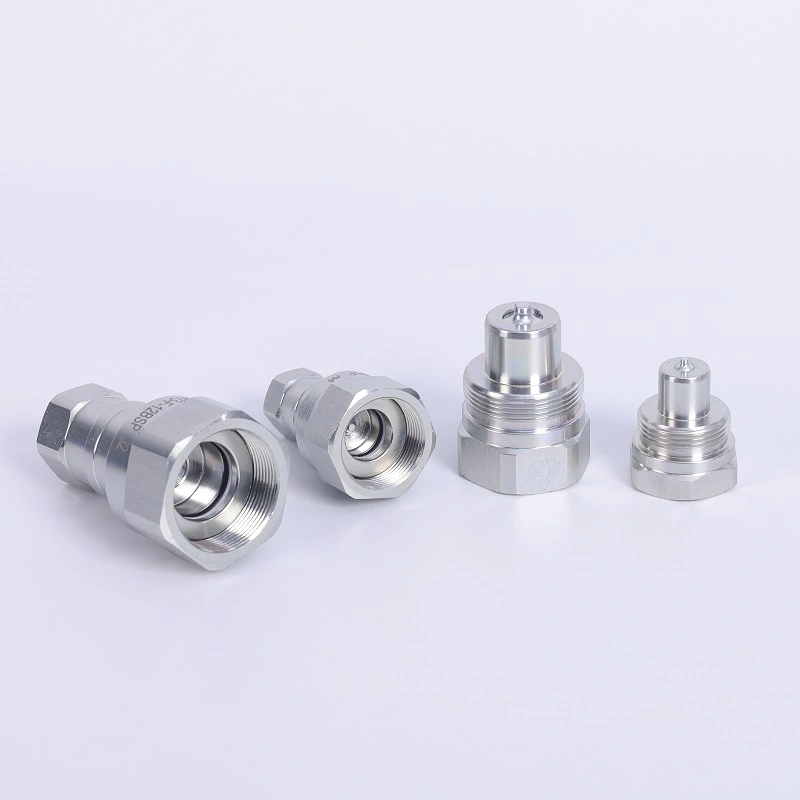

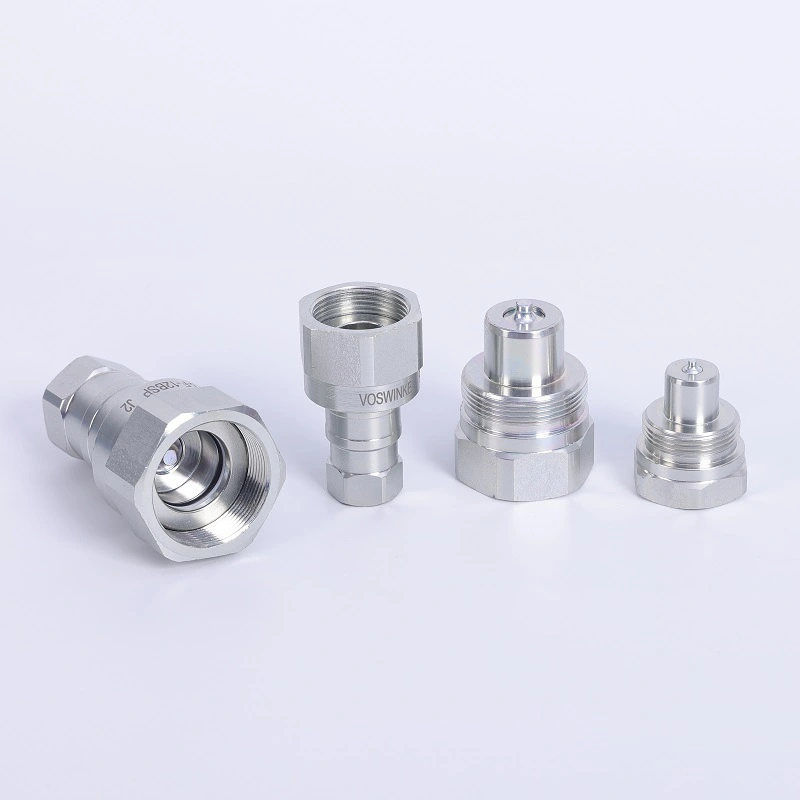

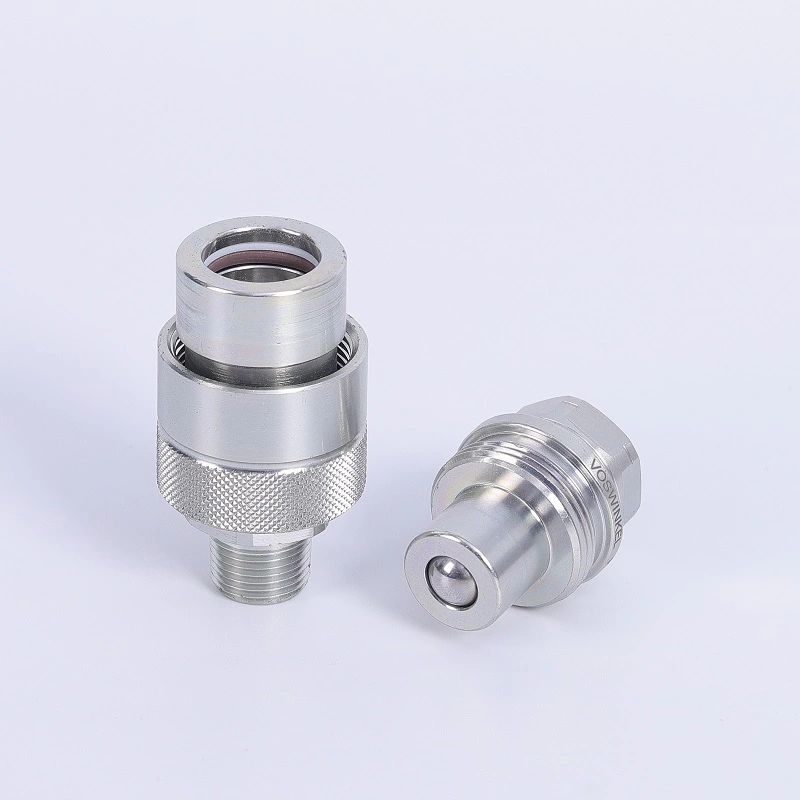

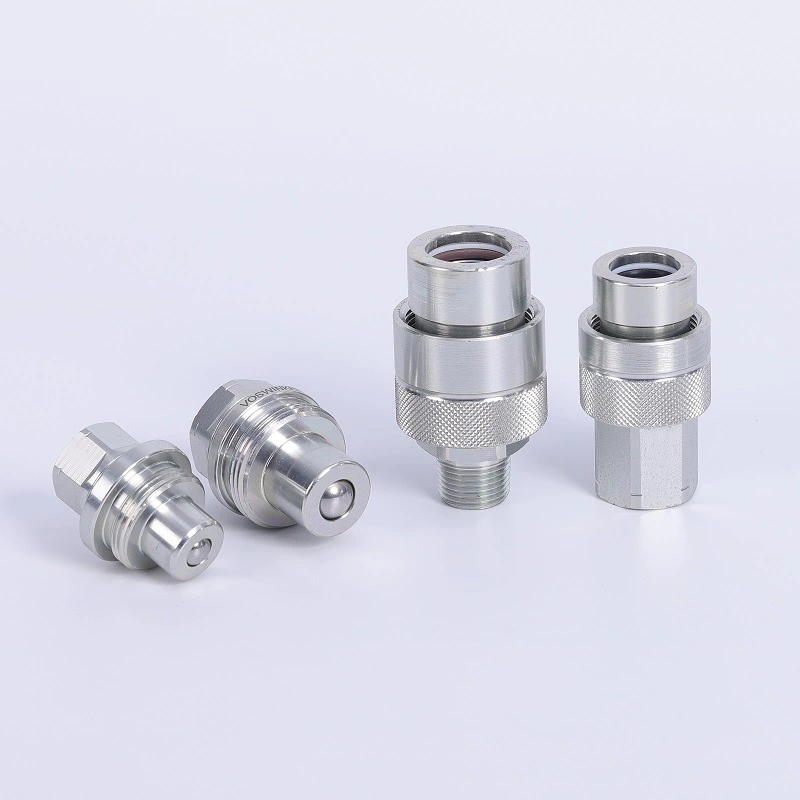

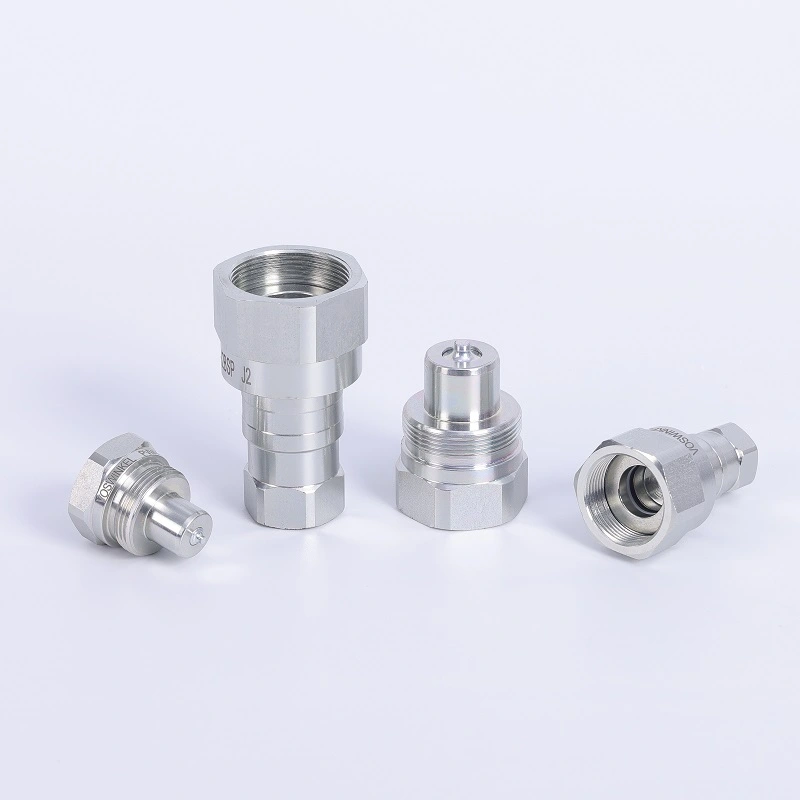

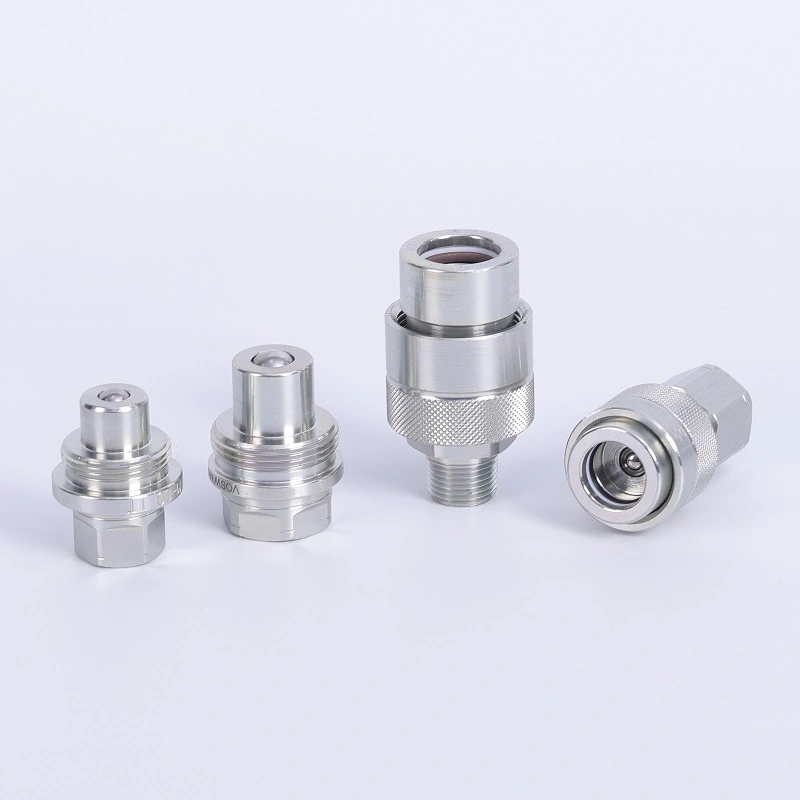

Ultra high-pressure quick couplings meeting ISO 14540 standards, designed for 70MPa applications, ensuring secure, leak-free connections.
| Nominal size | Working pressure | Rated flow (ISO) | Max flow rate | Burst pressure | Fluid spillage | |||
| Male | Female | Coupled | ||||||
| PVM | ISO | Mpa | 1/min | 1/min | Mpa | Mpa | Mpa | cc |
| PVM06 | 6.3 | 70 | 5 | 10 | 270 | 200 | 220 | 0.2 |
| PVM10 | 10 | 70 | 9 | 20 | 280 | 300 | 330 | 0.6 |
| 内螺纹DIN 3852 /ANSI B1.20.1 /Female Thread DIN 3852 /ANSI B1.20.1 | ||||||||||||||

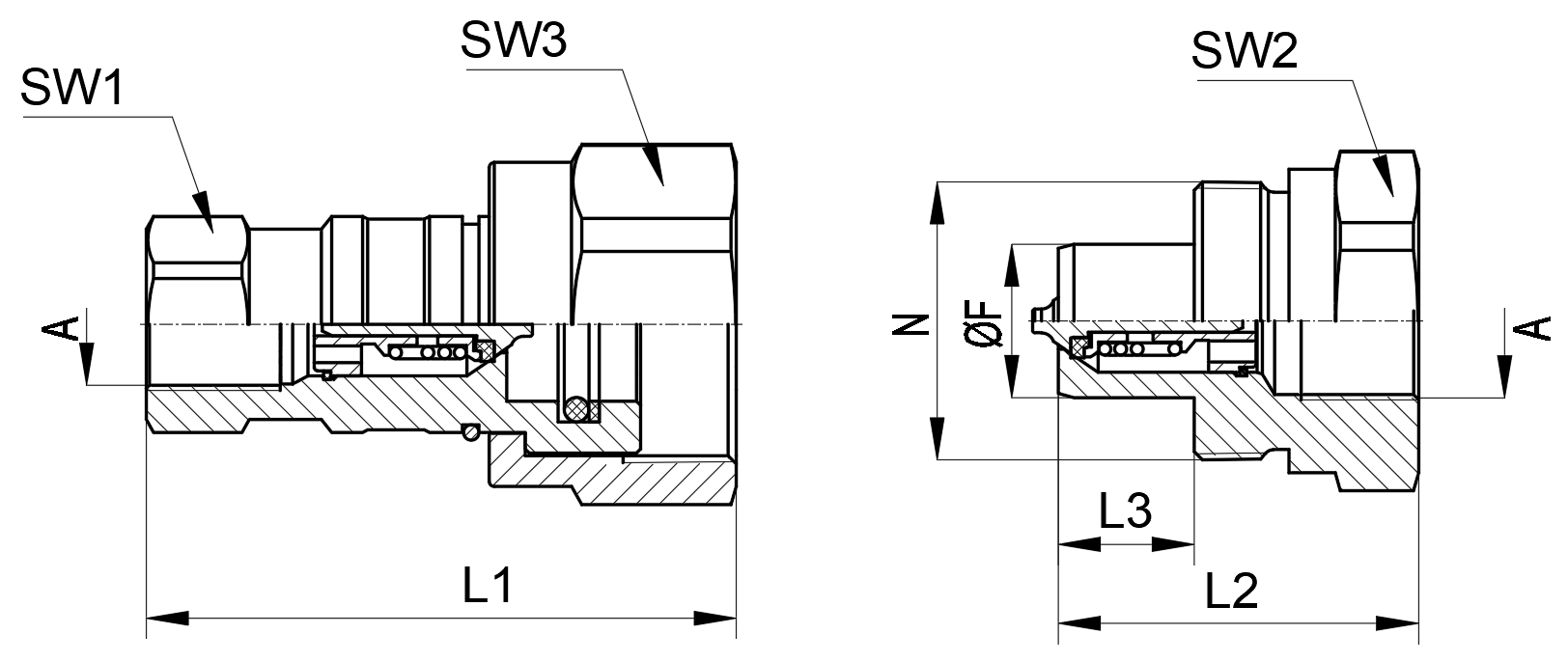

| ISO | A部分 Port A | 尺寸 | 母头 | 重量 | 公头 | 重量 | ||||||||
| Dimensions(mm) | Female Body | Weight | Male Tip | Weight | ||||||||||
| D | L1 | L2 | L3 | N | ØF | SW1 | SW2 | SW3 | Part Numbers | (g) ca | Part Numbers | (g) ca | ||
| 6.3 | G 1/4 | 57 | 35 | 13.2 | M27X1.5 | 14.9 | 19 | 30 | 32 | PVM06-F-14BSP | 149 | PVM06-M-14BSP | 90 | |
| NPT 1/4 | 57 | 35 | 13.2 | M27X1.5 | 14.9 | 19 | 30 | 32 | PVM06-F-14NPT | 150 | PVM06-M-14NPT | 91 | ||
| G 3/8 | 59 | 35 | 13.2 | M27X1.5 | 14.9 | 22 | 30 | 32 | PVM06-F-38BSP | 176 | PVM06-M-38NPT | 116 | ||
| NPT 3/8 | 59 | 35 | 13.2 | M27X1.5 | 14.9 | 22 | 30 | 32 | PVM06-F-38NPT | 178 | PVM06-M-38NPT | 117 | ||
| 10 | NPT 3/8 | 42.5 | 19 | 32 | PVM10-M-38NPT | 138 | ||||||||
| 13 | G 1/2 | 76 | 48 | 16.8 | M35X1.5 | 22 | 27 | 36 | 41 | PVM13-F-12BSP | PVM13-M-12BSP | |||
| NPT 1/2 | 76 | 48 | 16.8 | M35X1.5 | 22 | 27 | 36 | 41 | PVM13-F-12NPT | PVM13-M-12NPT | ||||
| 外螺纹24°锥形DIN 3861 /Male stud with type W bore (24°) to DIN 3861 | ||||||||||||||
| ISO | A部分 Port A | 尺寸 | 母头 | 重量 | 公头 | 重量 | ||||||||
| Dimensions(mm) | Female Body | Weight | Male Tip | Weight | ||||||||||
| D | L1 | L2 | L3 | N | ØF | SW1 | SW2 | SW3 | Part Numbers | (g) ca | Part Numbers | (g) ca | ||
| 6.3 | NPT 1/4 | 51.8 | 30 | 22 | 32 | PVM06-F-14ANF | 131 | |||||||
| 10 | NPT 3/8 | 56 | 35 | 24 | 32 | PVM10-F-38ANF | 165 | |||||||
